Input 220V Output 0-250V AC Regulator , Automatic Voltage Regulator TDGC2 - 7.5KVA

China Input 220V Output 0-250V AC Regulator , Automatic Voltage Regulator TDGC2 - 7.5KVA supplier

Large Image :  Input 220V Output 0-250V AC Regulator , Automatic Voltage Regulator TDGC2 - 7.5KVA

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: TDGC2 - 7.5KVA

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export carton , 1 Piece / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Detailed Product Description
Frequency: 50Hz / 60Hz Max.Temperature: 60 ℃
Variable Operation: Manually Operated Rotary Knob Housing Material: Shock - Proof Metal
Winding Material: 100% Copper No . Of Phase: Single Phase

Input 220V Output 0-250V AC Regulator ,Automatic Voltage Regulator TDGC2 - 7.5KVA



Product Description :

The Voltage regulators ( Variac ) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications . No additional wave from distortion . The main applications are :

  • Laboratory control equipment .
  • Lighting equipment .
  • Temperature controls .
  • Motor speed control .
  • Controlling of other transformers .
  • Etc .

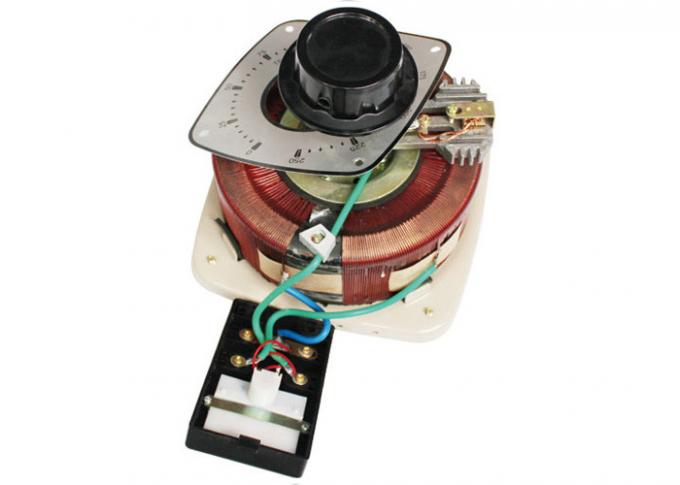

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator ( Variac ) which allows to act on the brush and achieve the desired voltage . The voltage can be smoothly varied between turns as the brush has a relatively high resistance ( compared with a metal contact ) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings .



Technical parameters :
  • 020Capacity......................................................7500VA
  • Output Current...........................................30A
  • Output.........................................................0~250VAC
  • Frequency..................................................50/60Hz
  • Input............................................................220VAC
  • Insulation Resistance..................................>5MΩ
  • No. of Phase..............................................Single-Phase
  • Winding Material........................................100% Copper
  • Max.Temperature........................................60℃
  • Insulation Class..........................................Class B(130℃)
  • IP/NEMA Rating..........................................IP20
  • Variable Operation.....................................Manually Operated Rotary Knob
  • Portable Carrying Grip................................Provided
  • Pollution Rating.........................................Class III
  • Analog Voltmeter Display............................Provided
  • Housing Material.......................................Shock-Proof Metal
  • Voltage Setting..........................................Manual Control
  • Standards.................................................VDE0550,IEC204-1,IEC61588,EC439
  • Sample Service..........................................Pay to Provide
  • Quality Assurance....................................18Months
  • Item Condition...........................................Brand-New
Item Capacity

Input Voltage

Output Voltage

Output Current

Case Qty .

Model ( kVA ) ( V ) ( V ) ( A ) ( Pcs . )
TDGC2 - 0.2 0.2 220 0 ~ 250 0.8 12
TDGC2 - 0.5 0.5 220 0 ~ 250 2 6
TDGC2 - 1 1 220 0 ~ 250 4 4
TDGC2 - 2 2 220 0 ~ 250 8 4
TDGC2 - 3 3 220 0 ~ 250 12 2
TDGC2 - 5 5 220 0 ~ 250 20 1
TDGC2 - 7.5 7.5 220 0 ~ 250 30 1
TDGC2 - 10 10 220 0 ~ 250 40 1
TDGC2 - 15 15 220 0 ~ 250 60 1



Input 220V Output 0-250V AC Regulator , Automatic Voltage Regulator TDGC2 - 7.5KVA
