Three Phase TSGC AC Automatic Variac Voltage Regulator with 380 Input

China Three Phase TSGC AC Automatic Variac Voltage Regulator with 380 Input supplier

Large Image :  Three Phase TSGC AC Automatic Variac Voltage Regulator with 380 Input

Product Details:

Place of Origin: zhejiang, china
Brand Name: YOMIN
Certification: ce, rohs
Model Number: TSGC2-3KVA

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: it can be appreciated
Packaging Details: Tailor-made foam to provide enough support to the Product. Even provide Wood pallet for certain cases.
Delivery Time: shipped in 2-5 days after payemnt
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per month
Detailed Product Description
Capacity: 3KVA Output Current: 4A
Output Voltage: 0-250V Item Condition: Brand-New
Analog Voltme: Provided Voltage Setting: Manual Control
Insulation ResistInsulation Resist: ≥5MΩ Sample Service: Pay To Provide
Quality Assura: 18 Months

Three Phase TSGC AC Automatic Regulator Variac Price with 380 Input



Product description



The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to the maximum voltage for which they have been designed and among the most usuall applications. No additional wave from distortion. The main applications are:

  • Laboratory control equipment.
  • Lighting equipment.
  • Temperature controls.
  • Motor speed control.
  • Controlling of other transformers.
  • Etc.

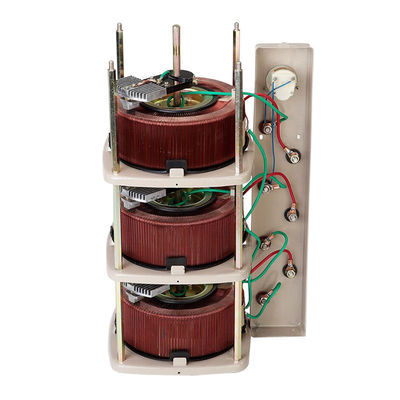

Manually Operated Rotary Knob to control output voltage, by means of a control button on the shaft of the voltage regulator (Variac) which allows to act on the brush and achieve the desired voltage. The voltage can be smoothly varied between turns as the brush has a relatively high resistance (compared with a metal contact) and the actual output voltage is a function of the relative area of brush in contact with adjacent windings. In international, some countries call voltage regulator as Variac or variable transformer, or variable autotransformer.



Features



  • Capacity.............................................................1,500VA
  • Output Current..................................................2A
  • Output................................................................0~430V AC
  • Frequency.........................................................50/60Hz
  • Input...................................................................380V AC
  • Insulation Resistance......................................>2MΩ
  • No. of Phase......................................................Three-Phase
  • Winding Material...............................................100% Copper
  • Max.Temperature..............................................60℃
  • Insulation Class................................................Class B (130 ℃)
  • IP/NEMA Rating.................................................IP20

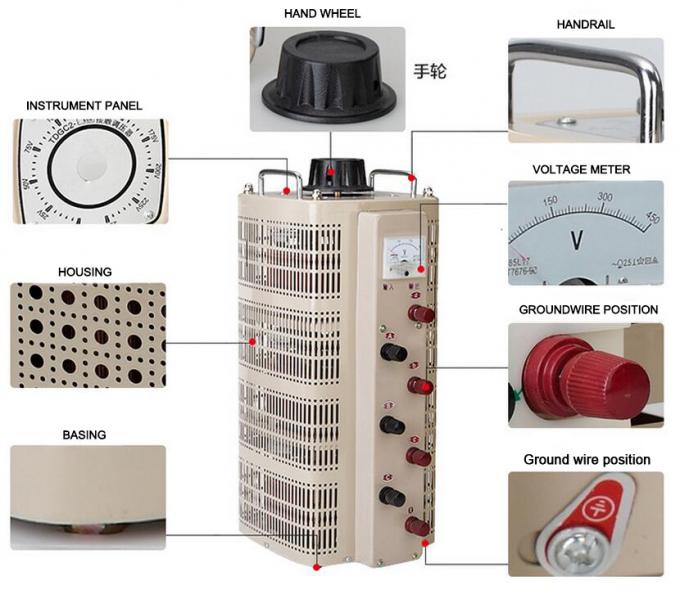

  • Variable Operation............................................Manually Operated Rotary Knob
  • Portable Carrying Grip.....................................Provided
  • Pollution Rating................................................Class III
  • Analog Voltmeter Display................................Provided
  • Housing Material...............................................Shock-Proof Metal
  • Voltage Setting..................................................Manual Control
  • Standards........................................................VDE0550, IEC204-1, IEC61588, EC439
  • Sample Service.................................................Pay to Provide
  • Quality Assurance............................................18Months
  • Item Condition...................................................Brand-New

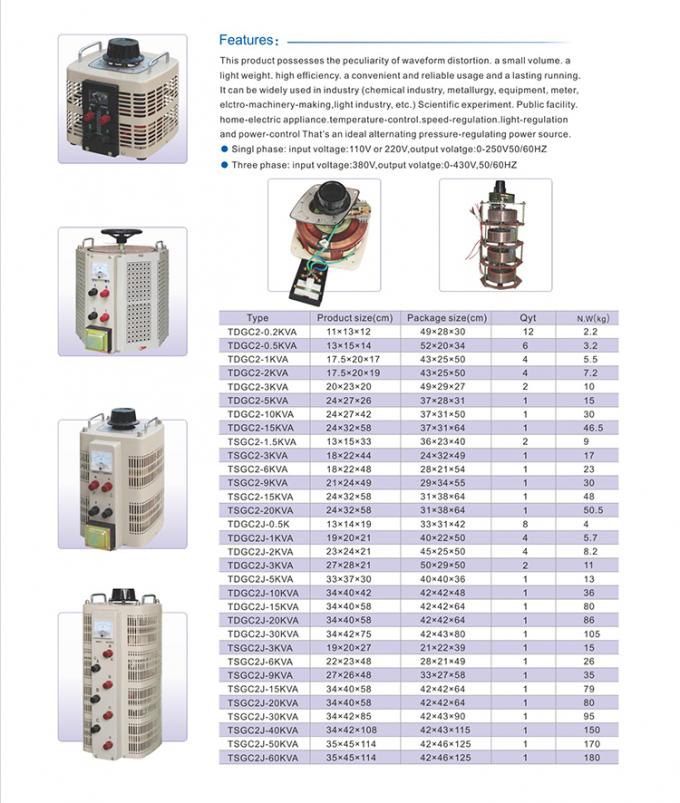

Selection Form



Item Capacity

Input

Voltage

Output

Voltage

Output

Current

Case Qty.
Model (kVA) (V) (V) (A) (Pcs.)
TSGC2-1.5 1.5 380 0~430 2 2
TSGC2-3 3 380 0~430 4 1
TSGC2-6 6 380 0~430 8 1
TSGC2-9 9 380 0~430 12 1
TSGC2-10 10 380 0~430 12 1
TSGC2-15 15 380 0~430 20 1
TSGC2-20 20 380 0~430 27 1
TSGC2-30 30 380 0~430 40 1
TSGC2-40 40 380 0~430 53 1
TSGC2-60 60 380 0~430 80 1




Three Phase TSGC AC Automatic Variac Voltage Regulator with 380 Input

Product packaging

Three Phase TSGC AC Automatic Variac Voltage Regulator with 380 InputThree Phase TSGC AC Automatic Variac Voltage Regulator with 380 Input
