Rental House use Re-settable Single Phase Din Rail Energy Meter With Reset Function

China Rental House use Re-settable Single Phase Din Rail Energy Meter With Reset Function supplier

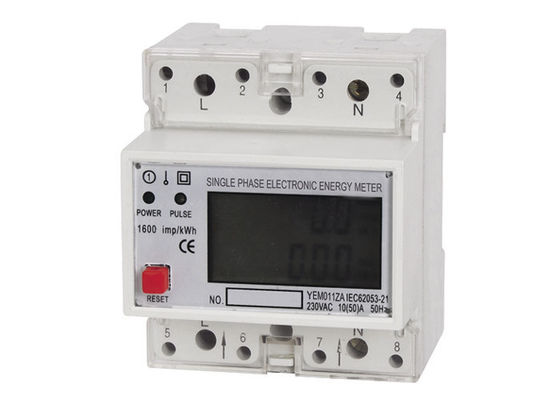

Large Image :  Rental House use Re-settable Single Phase Din Rail Energy Meter With Reset Function

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM011ZA

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Phase: Single Wire: Two
Basic Current: 5A 10A 20 A Max Current: 30A 50A 100A
Measuring Range: 0-99999.99kwh Operating Temperature: -20℃~+55℃



Re-settable Single Phase Din Rail Energy Meter With Reset Function for Rental House ​



Product Description:



Model YEM011ZA is a kinds of single phase two wire din rail active energy meter. It has resetting function, very suitable for use on rental houses. You can clear the number by pressing the red button on the panel. With two power energy counters, it can record and display total energy and daliy energy seperately. It has port of pulse output and can contact with any AMR system. It has the function of high accuracy, good reliability, easy installation. If you are looking for energy meter for rental house, YEM011ZA is definitely the best choice!



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM011ZA

Class 1

127/230V

5(30)A

10(50)A

20(100)A

0.02A

0.04A

0.08A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Easy to install, available as 35mm standard DIN rail installation, meeting the requirements of standard DIN EN50022, as well as front panel mounting (the center distance between two mounting holes is 63mm). Two mounting methods above are optional for user.



2. Class 1.0 accuracy, it can accurately measure power consumption with tiny error.



3. It has two 6 digits LCD display,2 counters, for total energy (5+1 digits display) and daily energy (4+2 digits display) respectively, and it is resettable through the red button on the panel.



4. Standard LCD display without backlighting, but you can also select the one with white backlighting.



5.There is built-in maintenance-free battery, for displaying data when power failure.



6. Standard configuration one port of pulse output passive (polarity),May select  increase a distant port of pulse output passive ( no polarity).



7.  It can work with all AMR systems conveniently,complying with standard IEC 62053-31 and DIN 43864.



8. Single direction measure single phase two wire active Power consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.



9. Two types of connection method can be chosen, standard configuration type S wiring and T wiring (Product Configuration code is TA).



10. Standard configuration short terminal cover, but you can select extension terminals cover for safety.



Dimension



Rental House use Re-settable Single Phase Din Rail Energy Meter With Reset Function



Wiring Diagram

                             Rental House use Re-settable Single Phase Din Rail Energy Meter With Reset Function
