Analog Display Single Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp

China Analog Display Single Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp supplier

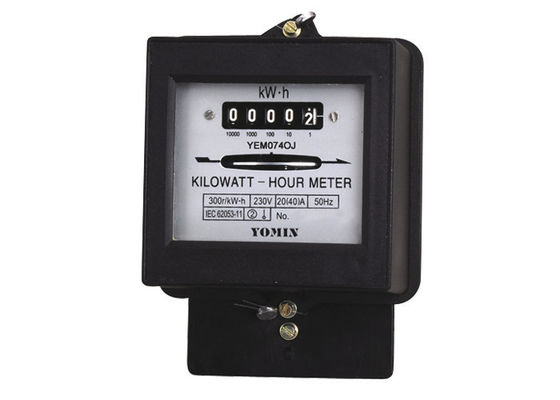

Large Image :  Analog Display Single Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM074OJ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Display: Analog Color: Black
Width: 89mm Tariff: Single
Mounting: Front Board Connection: Direct Connection



Analog Display 1 Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp



Product Description:



Model YEM074OJ single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD284 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: compact structure design, small size, economy benefits, specious appearance, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM074OJ

Class 2

127/230V

10(20)A

20(40)A

30(60)A

40(80)A

0.05A

0.1A

0.15A

0.2A

AC voltage 2kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Front board two fixed installation, the cover is made ABS engineering plastics molded overall which is black , fire-retardant and has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc.



2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.



3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.



4. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.



5. Standard configuration bottom bearing is used of single-precious stone bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. May select magnetic thrust bearing (Product Configuration code is OB) or double gem bearing (Product Configuration code is OF).



6. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.



7. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is OL).



8. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).



9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.



10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is OI).



11. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is SJ).

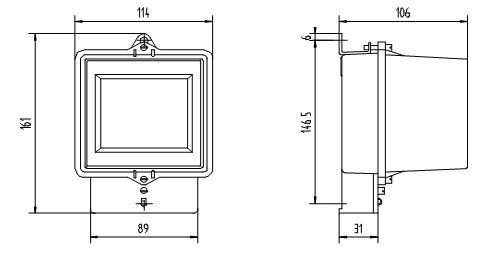

Dimension



Analog Display Single Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp



Wiring Diagram



Analog Display Single Phase 2 Wire Electromechanical Energy Meter 5Amp 10Amp 20Amp
