|Supply Voltage:||220V||Display Type:||Analog Only|
|Phase:||Single Phase||Scale:||Can Be Changeable|
|Accuracy Class:||3.0 & 1.5||Measuring Range:||5A - 6000A|
Bimetal and Moving Iron Analogue Panel Meters / Combined Maximum Demand Ammeter

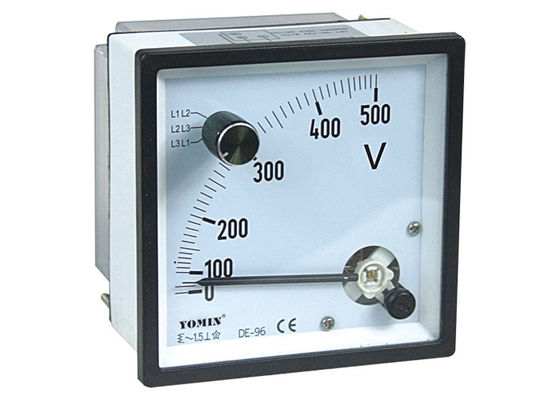

High quality Change over switch voltmeters desined to measure and extensive reange of electrical and electronic parameters.
Panel meters are instruments that display an input signal in an analog or digital form. Many panel meters also include alarm options as well as the ability to transfer data to a computer. Panel meters take a sample of the voltage or current to create a visual representation of the measured value. Voltage measurements are read across the line, while current measurements are taken in series with the load, sometimes utilizing shunts or current transformers when the load current exceeds 10 amps.
|Model||Frame size||Mode||Measuring Range||Class Index||Case Qty.|
IEC51, IEC61010-1, VDE410, BS89, UL94, NE60051, DIN43780
All cases at least dust and splash water-proof.

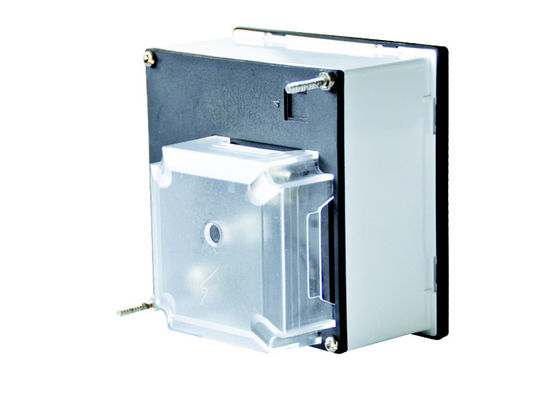

All cases are made of strengthened self-extingushing PPO With a high hit-resistance and a maximum electric isolation
100V,150V,200V,250V,300V,500V and 600V,if over 600V, meters can be connected potential transformer with secondary voltage 100V.
Three phase four wire position: L3-N,L2-N,L1-N,L1-L2,L2-L3,L3-L1.
