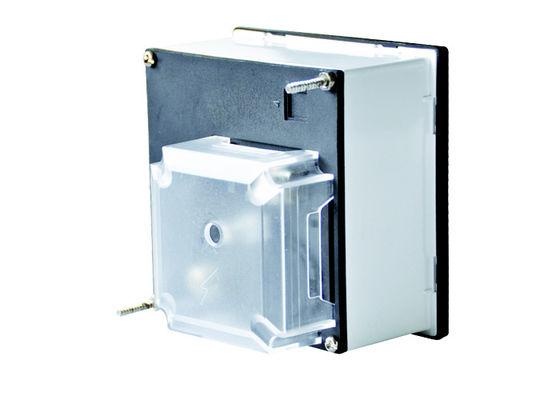

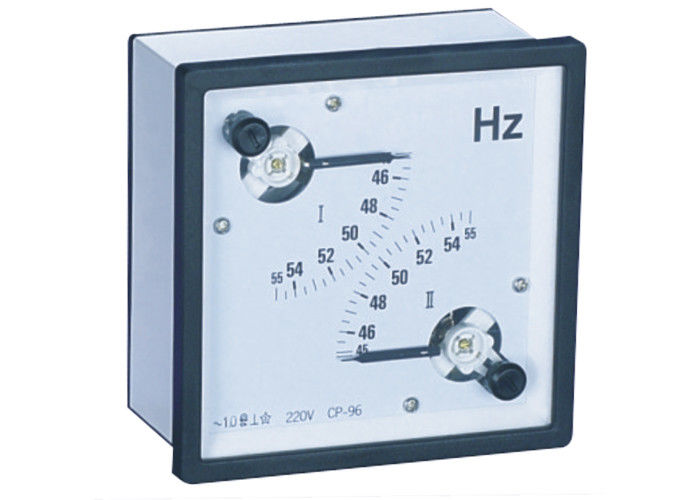

96 * 96 45 - 65 Hz Analogue Panel Meters , Dual Frequency Meter

China 96 * 96  45 - 65 Hz Analogue Panel Meters ,  Dual Frequency Meter supplier
96 * 96  45 - 65 Hz Analogue Panel Meters ,  Dual Frequency Meter supplier 96 * 96  45 - 65 Hz Analogue Panel Meters ,  Dual Frequency Meter supplier

Large Image :  96 * 96 45 - 65 Hz Analogue Panel Meters , Dual Frequency Meter

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DT - 2F96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: Polybag+paper box+carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang , China (Mainland) Brand Name: YOMIN
Voltage: 110V , 220V , 380V , 415V Model Numbe: DT - 2F96
Accuracy Class: 1.5 Operating Temperature: - 25℃ ~ + 40℃
Measuring Range: 45Hz-65Hz Dimensions: 96 * 96 , 72 * 72

96x96  45-65Hz Analogue Panel Meters /  Dual Frequency Meter


Description :


Panel meter is one kind of electric measure indicators with the direct effecting of imitative display. It is suitable for AC and DC output and input distribution circuit, power plant console cabinet, power operating board and different apparatus. It is used to measure DC current, voltage and AC current, voltage, frequency and phase power.


Voltage :110V,220V,380V,415V

Frequency:45-55HZ 45-65HZ 55-65HZ 47-53HZ 57-63HZ


Frequency meter is the instrument which measures the frequency. Frequency meter shows the number of the cycles in 1 second. Frequency meters are connected parallel to circuit which frequency will be measured like voltmeters.


Specification :


Model Frame size Measuring Range Class Index Case Qty.
DT-2F96 96X96 45~65Hz 1.5 48Pcs
DT-2F72 72X72 45~65Hz 1.5 48Pcs

Note: Please mention the voltage when ordering, our standard voltage are 110V,220V,380V,415V, special voltage upon request.




Scale Plate :

The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.

Scale plate with special requirements are available upon request.

Such as color, scale with lighting functions and PVC noctilucence are available upon request.


Color :

Black base and frame , white scale plate and meter body.


Pointer :

Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are available Upon request.


Anti-static :

All meters are subject to anti-static treatment to minimize the static-effect to the accuracy of  the meters.


Accuracy :



Operating position :

Generally, meter is installed in vertical position. Other installation position can be customized (please specify the desired angle).The accuracy class is just valid for the Corresponding installation mode.


Insulation Test :

The test Voltage for BE & BP series is 2KV RMS for 1 minute with the frequency 45~65Hz.


Safety Precautions :

Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.

The meter should be kept clean, if the meter is used in a manner not specified by the manufacturer, the protective function may be impaired.



Dimension :


96 * 96  45 - 65 Hz Analogue Panel Meters ,  Dual Frequency Meter


Frame Size Dimension(mm)
96x96mm 96 92 90 5.5 65 43
72x72mm 72 68 66 5.5 65 43
