300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter

China 300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter supplier
300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter supplier 300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter supplier 300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter supplier

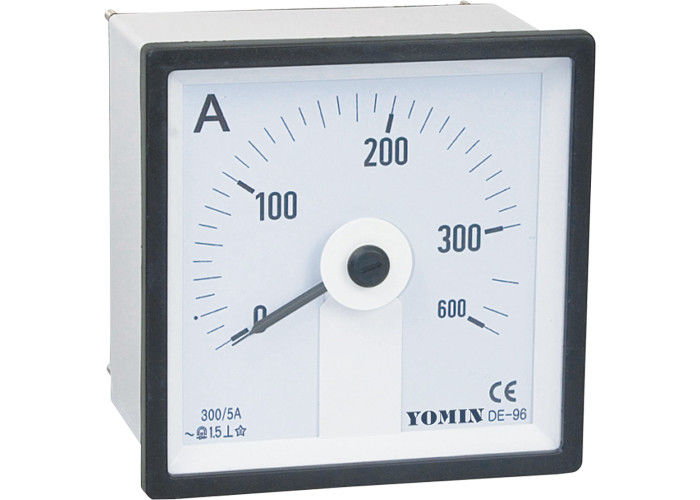

Large Image :  300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: DG - A96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: Polybag+paper box+carton
Delivery Time: 5 - 30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Brand Name: YOMIN OEM/ODM: Allowed
Dimensions: 96 * 96,72 * 72,48 * 48 Accuracy Class: 1.5
Operating Temperature: - 25℃ ~ +40℃ Casing: ABS And PPO
Scale: Can Be Changeable

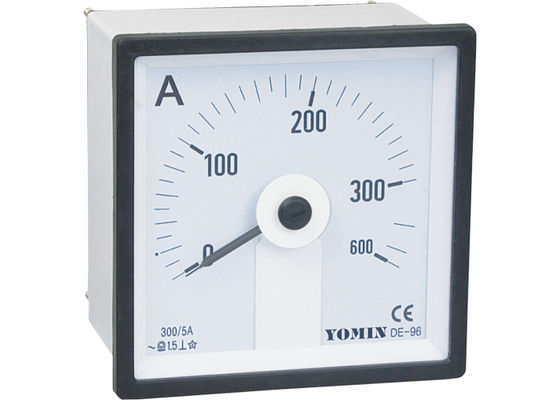

300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter

Description :
In analog meters, the interface is application specific and can display any unit of measure, with nearly any input signal that is representative of the process. An analog meter can display speed, frequency, Voltage, current, temperature, strokes per minute, or feet per second. The actual input signals are analog voltage or current, in either AC or DC. An example is 0 to 10 volts DC, four to 20 milliamps DC or 0 to 100 volts DC. Digital meters operate in much the same way; however digital meters will often-times also include digital scaling of the display relative to the input signal.

Specification :



ModelFrame size(mm)ModeMeasuring RangeClass IndexCase Qty.
DG-A9696x96X/5A5~6000A1.548
DG-A7272x72X/5A5~6000A1.548

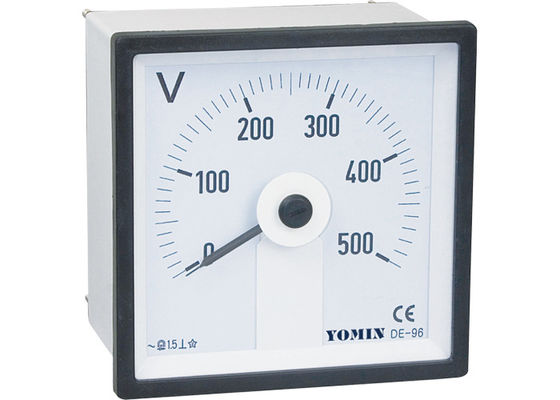

DG-V9696x96-30~500V1.548
DG-V7272x72-30~500V1.548

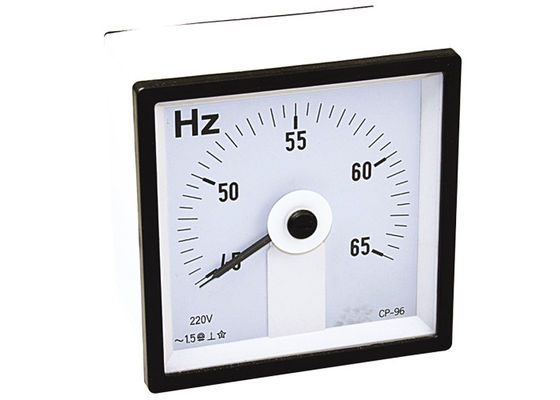

DG-F9696x96220V45~65Hz1.548
DG-F7272x72220V45~65Hz1.548

Note: Please mention the voltage and watts when ordering. Reactive power meter upon request.


Features :



All cases at least dust and splash water-proof.
All cases are made of strengthened self-extingushing PPO With a high hit-resistance and a maximum electric isolation

Accuracy class :

AC, DC Voltmeters and Ammeters comply with the accuracy class 1.5.
The power meters comply with accuracy class 1.5.
The frequency meters comply with accuracy class1.0.
The maximum-demand meters comply with accuracy class 3.0.
The power factor meters and synchroscope meter comply with accuracy class 2.5.

Insulation test :

The insulation test is carried out at a voltage of 2KV, 50Hz 1 min and applies for instruments with the full scale deflection up to 650V. Other standards comply with IEC61010-1.

Temperature influence:
All instruments operate trouble-free at room temperature ranging from -25 to + 40.
The Max. Voltage to earth Voltmeter-The upper range voltage (full scale deflention)
Ammeter-The Voltage of the main power supply.
The meter used shall be keep cleaning. The user shall be made aware that, if the meter is used in a manner not specified by the manufacturer, the protection provided by the meter may be impaired.

Mounting angle:

The instruments are calibrated for vertical mounting, unless other positions such as horizontal or inclined at any specified angle to the horizon. can be provided upon request (in this case, specify angle of inclination, please) The accuracy class refers to the specified mounting angle only.


Dimension :

300/5A 240° Long Scale Meter / Moving Instrument DC Ammeter / Frequency / Analog Meter
