Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU

China Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU supplier

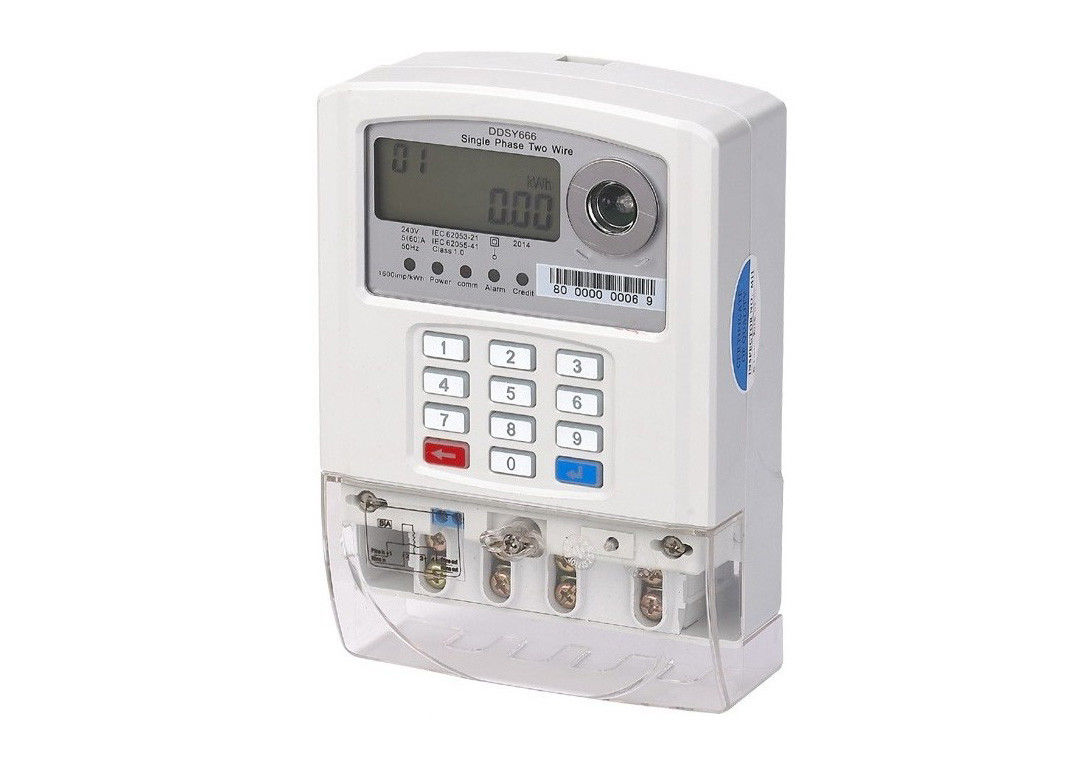

Large Image :  Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: DDSY666-NEW

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Supply Ability: 10000pcs per month
Detailed Product Description
Voltage: 220V Frequency: 50/60Hz
Accuracy: Class 1 Display: LCD
Sample Time: 3-5 Days RS485: Yes


Single Phase STS Split Prepaid Energy Meter, STS Keypad Prepaid Meter With UIU

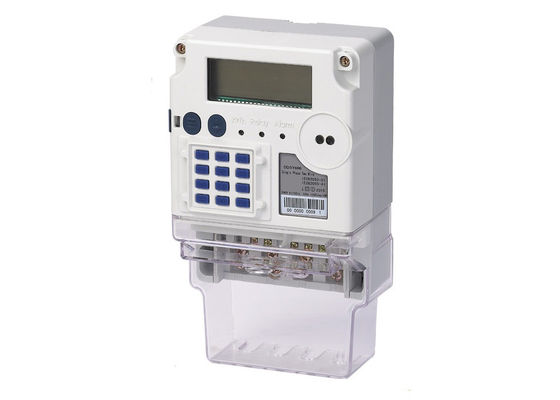

Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU
Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU

Product Description



Model DDSY666-NEW STS single phase keypad prepayment energy meter is new type of single phase two wire prepayment meter. The meter has photoelectric communication port, according with the standard IEC62056-21. It can accurately measure total active energy consumption, remaining electricity quantity, voltage and so on. It is very easy to operate the meter. User will get a series of 20 bits code TOKEN after purchasing electricity from electricity selling department, then recharge successfully by correctly input 20-digit TOEKN code with the buttons on the meter. Besides, the meter can detect electricity theft, reverse connection, meter cover opening, terminal cover opening and etc, protecting meter from electricity theft.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

DDSY666-NEW

Class 1

230V

5(60)A

0.02A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 8kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. The meter can measure forward active energy consumption, backward active energy consumption, voltage, current, instantaneous power and etc;



2. The meter has 64K NV EEPROM, can record total energy consumption, remaining electricity quantity, events and recharge



3. The LCD screen can show remaining electricity quantity, to remind user to purchase electricity;



4. Balance alarm can be set by user according to his own need;



5. With photoelectric communication port, user can read and set parameters of the meter through the PC software;



6. The meter can detect reverse connection of zero line and live line, take the absolute value and calculate the power consumption;



7. The meter can detect more than 400mT magnetic field, LCD shows status of electricity theft and record;



8.  User can recharge successfully just by correctly input 20-digit TOEKN code with the buttons on the meter, not need any card.



Wiring Diagram


Single Phase STS Split Prepaid KWH Meter STS Keypad With UIU
