IP54 Single Phase Electricity Active Digital Energy Meter LCD Display

China IP54 Single Phase Electricity Active Digital Energy Meter LCD Display supplier

Large Image :  IP54 Single Phase Electricity Active Digital Energy Meter LCD Display

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS/STS
Model Number: YEM313

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Detailed Product Description
Model Number: YEM313 Measuring Energy Range: 5(30),10(60),20(100)A
Output Voltage: 127/230V Accuracy Class: 1.0
Phase: Single Phase Protection Degree: IP54
Operating Temperature: -25℃~70℃ ODM/OEM: Welcome

YEM313 5/100A Single Phase Electricity Active Digital Energy Meter LCD Display



Product Description

Model YEM313 single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is used for setting indoor or setting out door directly, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.



Specification


Model YEM313
Accuracy 2.0
Reference voltage(V) 127V,230V
Current specifications(A) 5(30)A,10(60)A,20(100)A
Starting current(A) 0.025A,0.05A,0.1A
Insulation performance

AC voltage 4KV for 1 mimute,

1.2/50us waveform impulse voltage 6KV

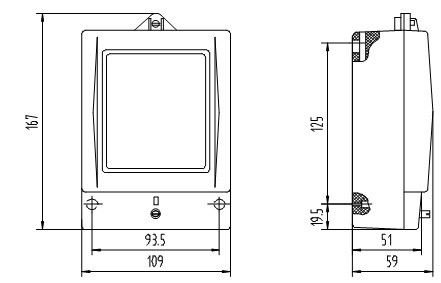

Dimension

IP54 Single Phase Electricity Active Digital Energy Meter LCD Display

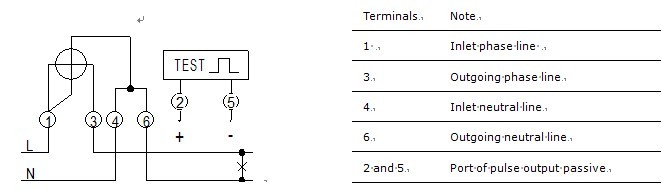

Wiring Diagram

IP54 Single Phase Electricity Active Digital Energy Meter LCD Display
