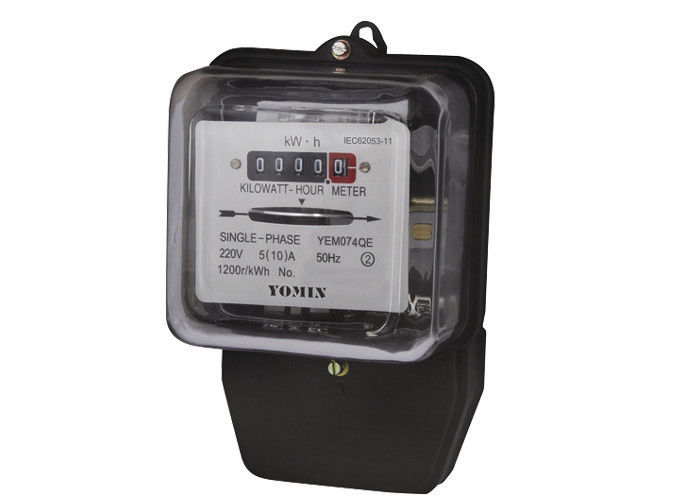

IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter

China IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter supplier
IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter supplier IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter supplier

Large Image :  IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM074QE

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Display: Analog Color: Black
Width: 109mm Tariff: Single
Starting Current: 0.05A 0.1A 0.15A 0.2A Storage Temperature: -30℃~50℃
High Light:

Electromechanical KWH Meter

,

Electromechanical Energy Meters



IEC 62053-11 1 Phase  Electromechanical Energy Meter, Mechanical KWH Meter



Product Description:



Model YEM074QE single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD282 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: compact structure design, small size, economy benefits, specious appearance, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM074QE

Class 2

127/230V

10(20)A

20(40)A

30(60)A

40(80)A

0.05A

0.1A

0.15A

0.2A

AC voltage 2kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Front board two fixed installation, the cover is made of high definition transparent glass material molded overall , the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.



2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.



3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.



4. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.



5. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is QA) or single-precious stone bearing (Product Configuration code is QI).



6. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.



7. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is QG).



8. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).



9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.



10. Direct connect operation, there are two types you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is QF).



11. Extension terminals cover, in order to protect to use safety.

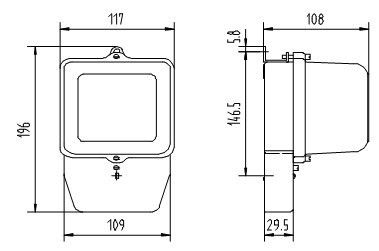

Dimension



IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter



Wiring Diagram



IEC 62053-11 Single Phase Electromechanical Energy Meter , Mechanical watt hour meter
