Office / Shopping Mall / Airport Use Din Rail Watt Hour Meter / Electricity Energy Meter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Phase: | Single | Accuracy Class: | 1.0 |
|---|---|---|---|
| Basic Current: | 10A | Max Current: | 100A |
| Display:: | LCD | Output Voltage:: | 127/230V |
| Max.operation Temperature:: | -20°C ~ +75°C | Dimension:: | 140x35x64mm |
| High Light: | din rail energy meter,three phase watt hour meter |
||

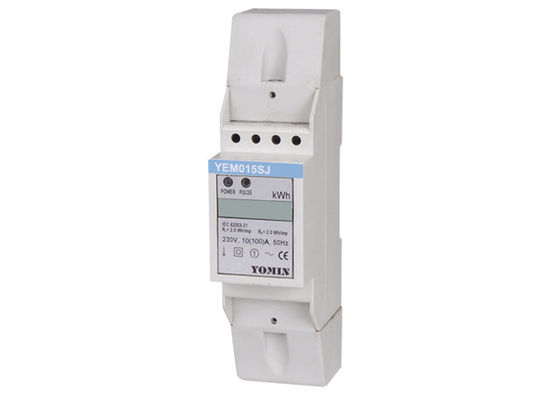

LCD DIN Rail Single Phase Energy Meter /Electricity Meter / kWh Meter
Product Description
The meter is used to measure 50Hz or 60Hz active energy consumption from single phase two wire AC electricity net.
The features of small size and DIN-rail mounting make it suitable for installation in distribution boards and small standard enclosures.
The meter is widely used in the office buildings, shopping malls, residences, airports and metro,etc.
The meter’s LCD shows various consumption data and information.
Specification
|
Model |
Accuracy |
Reference Voltage |
Current Specification |
Starting Current |
Insulation Performance |
|
YEM015SJ |
Class 1 |
127/230V |
10(100)A |
0.04A |
AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv |
* If you need different reference voltage or current specification, please advisory our sales personnel.
Features
1. 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022.
2. LEM012SG width is bipolar, complying with Standards DIN43880.
3. Standard 7+1 digits display (9999999.1kWh) with white backlight LCD.
4. Equipped with a polarity passive energy impulse output terminal (polarity), complying with standard IEC 62053-31 and DIN 43864.
5. Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
6. Atomatic detection the direction of the flow of load current. And instructions on LED (Display HELP 1 on LCD means reverse of load current).
7. Directly type S connection.
8. Extension terminals cover to protect to use safety.
Dimension
Wiring Diagram
