Three Phase Four Wires Din Rail Watt Hour Meter , Electronic KWH Meter

China Three Phase Four Wires Din Rail Watt Hour Meter , Electronic KWH Meter supplier

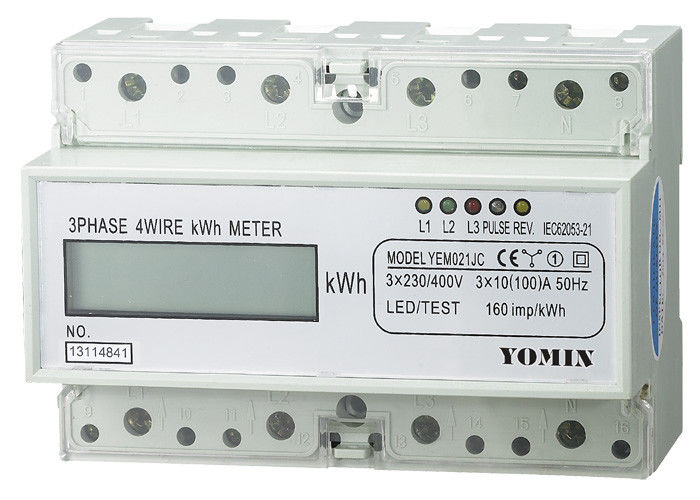

Large Image :  Three Phase Four Wires Din Rail Watt Hour Meter , Electronic KWH Meter

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM021JC

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Standard: IEC 62053-21 Basic Current: 5A 10A 20A
Max Current: 30A 60A 100A Color: White
Accuracy: Class 1 Display: LCD
Frequency Rate: 50/60Hz Accuracy Class: Class1 Or 2

LCD 5-100AThree Phase Four Wires Din Rail Energy kwh Meter, Electrity Meter



Product Description

Model YEM021JC three-phase electronic type watt-hour meter adopts the advanced SMT process and solid-state integrated circuit technology of ultra-low power consumption, it is used to measure the active electric energy of single-phase AC 50Hz, all technical indexes are in conformity with  IEC 62053-21, Electricity metering equipment (a.c.) – Particular requirements - Part 21: Static meters for active energy (classes 1 and 2) on single-phase static watt-hour meter.



Specification

Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM021JC

Class 1

3x127/220V

3x230/400V

5(30)A

10(60)A

20(100)A

0.02A

0.04A

0.08A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.

2. Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

3. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).

4. Standard configuration one port of pulse output passive (polarity),May select a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

5. Four LED instructions respectively every power supply state and signal of energy impulse.

6. Automatic detection the direction of the flow of load current. And Instructions on individual LED

7. Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

8. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use CT (Product Configuration code is IC) and PT & CT (Product Configuration code is HC) for operation.

9. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is JF).



Dimension

Three Phase Four Wires Din Rail Watt Hour Meter , Electronic KWH Meter



Wiring Diagram

Three Phase Four Wires Din Rail Watt Hour Meter , Electronic KWH Meter
