Electronic Analog Display Active Three Phase Energy Meter 7P 3P3W

7P 3P3W Electronic Analog Display Active Three Phase Energy Meter

Product Description

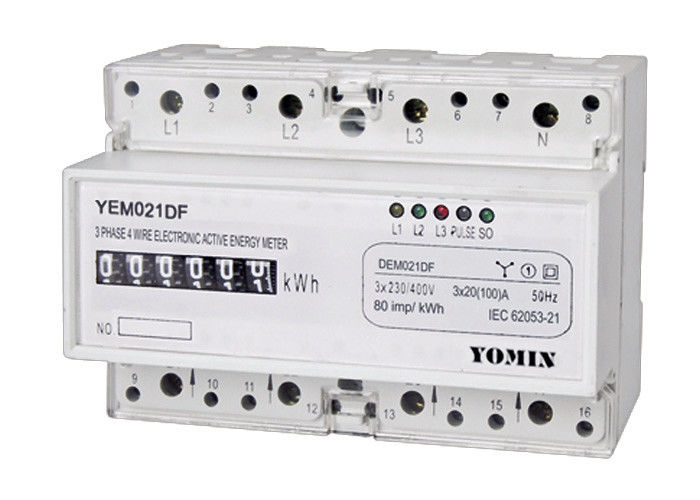

The meter is used to measure 50Hz or 60Hz active energy consumption from three phase three wire AC electricity net.
The features of small size and DIN-rail mounting make it suitable for installation in distribution boards and small standard enclosures.
The meter is widely used in the office buildings, shopping malls, residences, airports and metro, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Features

1. 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board installed (mounting holes center distance 63 mm), users can choose any one by themselves.

2. Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

3. Standard configuration 6 digits display (999999kWh) by step motor type impulse register. May select 7 digits display by impulse register (Product Configuration code is BJ).

4. There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

5. Five LED instructions respectively every power supply state and signal of closed energy impulse and distant energy impulse.

6. Automatic detection the direction of the flow of load current. And instructions (signal of closed energy impulse is green when working, that is meaning the direction of the flow of load current reverse).

7. Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

8. May select two components measure three phase three wire active energy (Product Configuration code is DE) or two phase three wire active energy (Product Configuration code is DD).

9. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of wiring, and use 5+1 digits display by impulse register, CT (Product Configuration code is CF) and PT & CT (Product Configuration code is BF) for operation.

10. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is DI).

Dimension

Wiring Diagram
