IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz

China IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz supplier

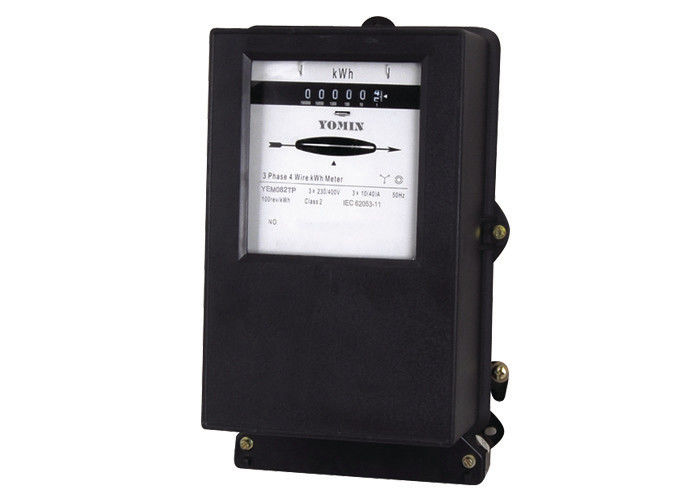

Large Image :  IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: YEM082TP

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Supply Ability: 10000pcs per month
Detailed Product Description
Year Of Manufacture: 2016 Voltage: 3×127/220V 3×230/400V
Frequency: 50/60Hz Accuracy: Class 2
Width: 167mm Tariff: Single
High Light:

prepayment energy meter

,

prepaid kwh meter


IS09001 ABS Material Three Phase Energy Meter 50Hz 60Hz for Middle East Market

Product Description


Model YEM082TP three phase four wire electromechanical front board installed active energy meter is a kind of new style three phase four wire active energy meter, it is on the basis of original D86 three phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 three phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM082TP

Class 2

3x127/220V

3X230/400V

5(20)A

10(40)A

20(80)A

30(100)A

0.025A

0.05A

0.1A

0.15A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 8kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



9. Standard configuration for direct connect operation, type 16B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is TQ), type 48B wiring, and PT & CT (Product Configuration code is TR), type 48B wiring for operation.



10. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is UP).1. Front board two fixed installation, the cover is made ABS engineering plastics molded overall which has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc.



2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.



3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.



4. Standard configuration the meter adopt double gem bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: long-life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is TD).



5. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.



6. Standard configuration 6 digits display by drum wheel mechanical register, may select 7 digits display by drum wheel mechanical register (Product Configuration code is TV).



7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).



8. Three components measure three phase four wire active energy consumption. Complying with standard IEC 62053-11.





Dimension



IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz



Wiring Diagram


IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz
IS09001 Class 2 Three Phase Energy Meter Single Tariff 50Hz 60Hz
