|Place Of Origin:||Zhejiang , China (Mainland)||Model Number:||YM-S1000|
|Output Voltage:||220V(120V And 240V||Adjustment Range:||0 To 120%|
|Harmonic Output:||2nd To 21th||Phase Adjustment:||0 To 359.9°|
|Voltage Output Capacity:||>15VA Per Postion||Current Output Capacity:||>25VA Per Postion|

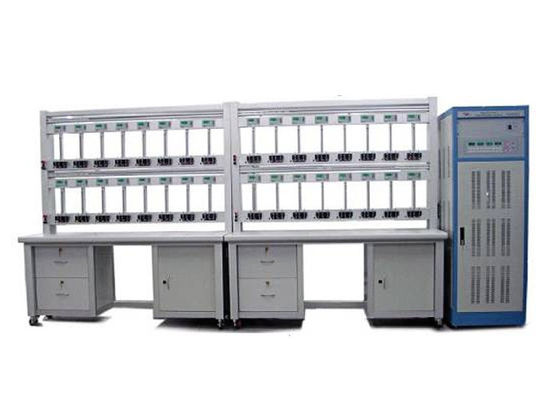

Single Phase Energy Meter Calibration Test Bench 16 /24 Postion 0.05% Accurancy
YM-S1000 single phase energy auto-calibration system is a new generation, high precision energy meter calibration equipment. It uses the advanced technology and electronic components available in 90 decade . The test bench can be operated from embedded keyboard or operated from PC software.
Power supply: 220V+10%, 50Hz/60Hz
Maximum power consumption: 1000VA (reference for 24 positions)
1) Equipped with electronic phantom load power source, assuring high stability, security and large output capacity.
2)Automatic adjustment of current measurement range. Fault self-detection in voltage amplifier and current amplifier.
3) Equipped with RS-232C interface, can be operated from software.
4) Test results be saved to database, can be inquired from database and can be printed out.
Structure and main parts
① Error calculator ② Screw for tested meter
③ Bracket for tested meter
④ Keyboard / output display and signal generator
⑤ pulse input
(voltage source amplifier and current source amplifier)
(voltage range shifter and current range shifter)
