IS09001 Class 2 Single Phase Electromechanical Energy Meter , Mechanical Meter

Class 2 Mechanical Single Phase Energy Meter , Mechanical Meter With Bakelite Material

Product Description:

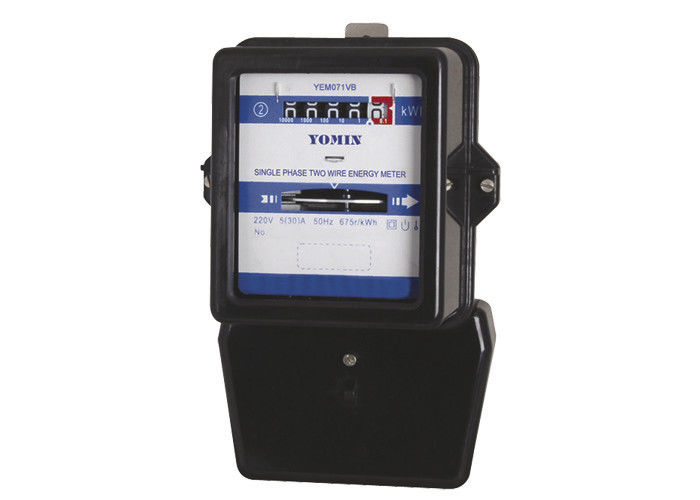

Model YEM071VB single phase electromechanical front board installed active energy meter is a kind of new style single phase two wire active energy meter, it is designed on the basis of original single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad, and development long-life technology. The meter completely accords with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is used for setting indoor or outdoor meter box, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. The meter frame adopt top-quality steel plate once molding with excellent mechanical strength, stable structure and anti-impact.

2. Voltage components is used of all closed vacuum pouring coil by epoxy resin. Current components is used of double insulation structure, has good electrical characteristics.

3. The meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: small abrasion, long life and minimal friction, etc.

4. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.

5. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is VE).

6. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.

7. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is VA).

8. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is RB).

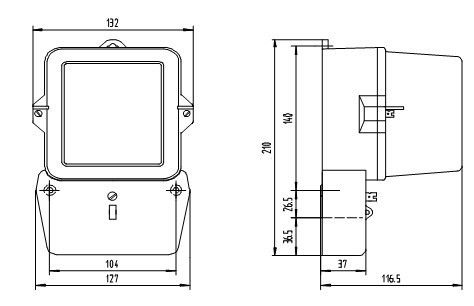

Dimension

Wiring Diagram
