IC Card 1 Phase 2 Wire Prepaid Energy Meter , Digital Energy Meter

China IC Card 1 Phase 2 Wire Prepaid Energy Meter , Digital Energy Meter supplier

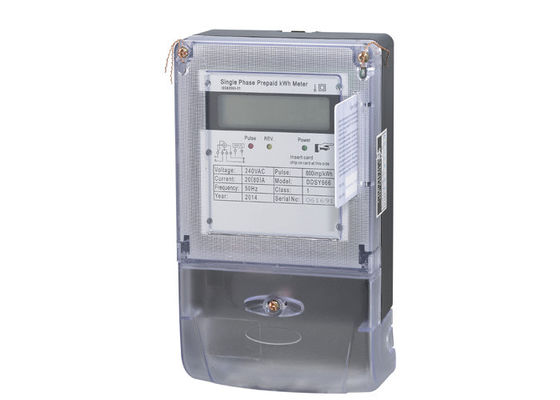

Large Image :  IC Card 1 Phase 2 Wire Prepaid Energy Meter , Digital Energy Meter

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: DDSY666

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Year Of Manufacture: 2016 Voltage: 127/230V
Frequency: 50/60Hz Accuracy: Class 1
Mounting: Front Board Connection: Direct Connection

IC Card 1 Phase 2 Wire Prepaid Energy Meter , Prepaid Digital Energy Meter



Product Description



DDSY666 is the new type single phase two wire prepaid energy meter. It is also called IC card meter. The prepaid meter effectively solves the problem that somes eletricity users are always in arrears with the eletricity bills.  When using this type of energy meter, the user needs to buy elereicity first, and then he can use the electricity. After the purchased electricity is run out, if the user does not continue to buy electricity, then the meter will automatically cut off. We will also provide free software for the owner to manage the system, deal with opening account, recharging, canceling the account and so on.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

DDSY666

Class 1

127/230V

5(30)A
10(60)A
20(100)A

0.02A

0.04A

0.08A

AC voltage 4kv for 1 minute,
1.2/50us waveform impulse voltage 6kv.



Competitive Advantage



1. One meter with one card, the card can be re-charged form PC software with IC programmer, may select one-time recharge card. (Please specified when ordering).


2. It has IC card with code and data against false, standard configuration use storage IC card, may select non-contact RF card.(Product Configuration code is PJ)


3. Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).



4. Standard configuration of the prepayment management system use of single version, may select network version. (Please specified when ordering).



5. It has load control and function of automatic fault detection and instructions, standard configuration without function of open terminals cover and detection, may select open terminals cover and cut power. (Please specified when ordering).



6. 6 LED digits display, 5+1 digits display (99999.1kWh), may select 7 LED digits display. (Product Configuration code is QB).



7. A port of pulse output passive closed (polarity), complying with standard IEC 62053-31 and standard DIN 43864.



Dimension



IC Card 1 Phase 2 Wire Prepaid Energy Meter , Digital Energy Meter



Wiring Diagram



IC Card 1 Phase 2 Wire Prepaid Energy Meter , Digital Energy Meter
