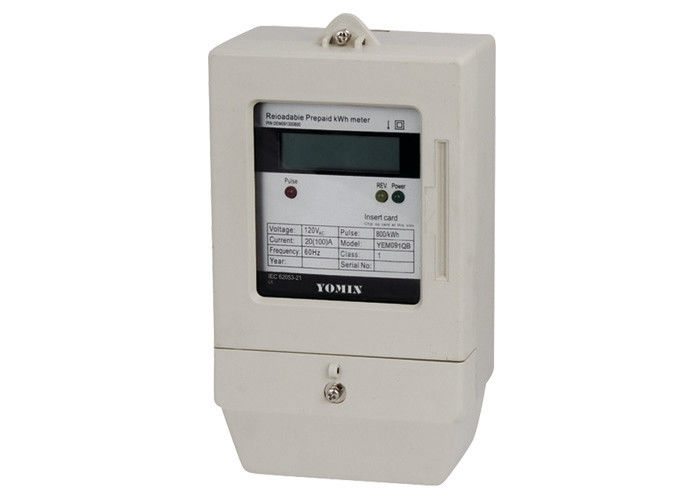

Class 1 LCD Display Prepaid Energy Meter , Prepayment Electricity Meter With IC Card

Name: Class 1 LCD Display Prepaid Energy Meter , Prepayment Electricity Meter With IC Card
Brand: YOMIN
SKU: YEM091QB
Rating: 4.9 (109 reviews)

: Large Image : Class 1 LCD Display Prepaid Energy Meter , Prepayment Electricity Meter With IC Card

Product Details:

Place of Origin:	China
Brand Name:	YOMIN
Certification:	CE/RoHS
Model Number:	YEM091QB

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	negotiation
Packaging Details:	standard export carton
Delivery Time:	5-30 working days after receiving payment
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Voltage:	127V 230V	Frequency:	50/60Hz
Accuracy:	Class 1	Display:	LCD
Tariff:	Single	Measuring Energy Range:	0~ 999999.1kwh
High Light:	prepayment energy meter , pre paid electricity meters

Class 1 LCD Display Prepaid Energy Meter , Prepayment Electricity Meter With IC Card

Product Description

Model YEM091QB single phase electronic prepayment front board installed active energy meter is a kind of single phase two wire active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. This meter has LCD display power. It has following features: god reliability, light weight, specious nice appearance, convenient installation, etc.

Specification

Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM091QB

Class 1

127/230V

5(30)A

10(60)A

20(100)A

5(30)A

10(60)A

20(100)A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. Standard configuration one meter one card, can repeat input money from PC machinery which with IC programmer, may select one-time recharge card. (Please specified when ordering).

2. It has IC card with code and data against false, standard configuration use storage IC card, may select non-contact RF card. (Product Configuration code is QJ)

3. Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).

4. Standard configuration of the prepayment management system use of single version, may select network version. (Please specified when ordering).

5. It has load control and function of automatic fault detection and instructions, standard configuration without function of open terminals cover and detection, may select open terminals cover and cut power. (Please specified when ordering).

6. Standard configuration 7 LCD digits display, 6+1 digits display (999999.1kWh), may select 5+1LED digits display. (Product Configuration code is PB).

7. A port of pulse output passive closed (polarity), complying with standard IEC 62053-31 and standard DIN 43864.

8. Three LED instructions power supply state (green), signal of energy impulse (red) and direction of the flow of load current (yellow).

9. Automatic detection the direction of the flow of load current. When the yellow LED display, that is meaning the direction of the flow of load current reverse.

10. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

11. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is QA).

12. Front board three fixed installation, standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is QD).

Dimension

Class 1 LCD Display Prepaid Energy Meter , Prepayment Electricity Meter With IC Card
