ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader

China ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader supplier

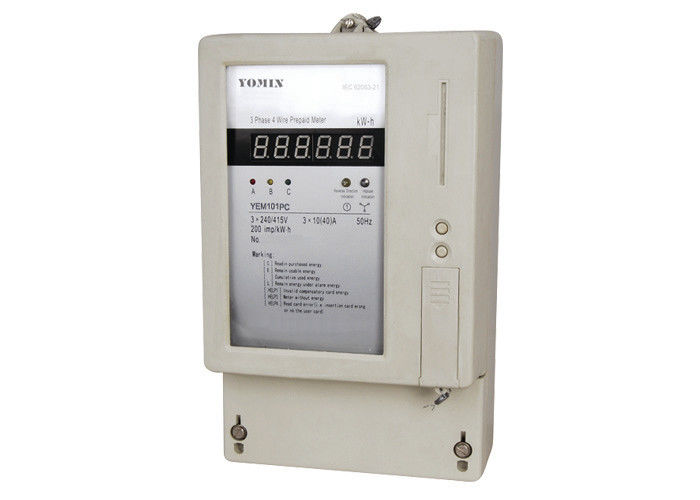

Large Image :  ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: YEM101PC

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Supply Ability: 10000pcs per month
Detailed Product Description
Voltage: 3x127/220V 3X230/400V Frequency: 50/60Hz
Accuracy: Class 1 Display: LED
Operating Temperature: -40℃~65℃ Reference Standard: IEC 62053-21
High Light:

prepayment energy meter

,

pre paid electricity meters


ISO9001 Three Phase / 3 Phase Prepaid Energy Meter With IC Card With Free Software

Product Description



Model YEM101PC three phase four wire electronic prepayment front board installed active energy meter is a kind of three phase four wire active energy meter which purchase electricity by IC card, electric energy measuring, load control and using electricity management. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. This meter has LED display shows power. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.



Specification



Model

Accuracy

Reference Voltage

Current Specification

Starting Current

Insulation Performance

YEM101PC

Class 1

3x127/220V

3X230/400V

5(30)A

10(60)A

20(100)A

0.02A

0.04A

0.08A

AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 8kv

* If you need different reference voltage or current specification, please advisory our sales personnel.



Competitive Advantage



1. Standard configuration one meter one card, can repeat input money from PC machinery which with IC programmer, may select one-time recharge card. (Please specified when ordering).



2. It has IC card with code and data against false, standard configuration use storage IC card, may select non-contact RF card. (Product Configuration code is PK)



3. Standard configuration payment by kWh, may select payment by money. (Please specified when ordering).



4. Standard configuration of the prepayment management system use of single edition, may select network edition. (Please specified when ordering).



5. It has load control and function of automatic fault detection and instructions, standard configuration without function of open terminals cover and detection, may select open terminals cover and cut power. (Please specified when ordering).



6. 6 LED digits display, 5+1 digits display (99999.1kWh), may select 7 LCD digits display. (Product Configuration code is QC).



7. A port of pulse output passive closed (polarity), complying with standard IEC 62053-31 and standard DIN 43864.



8. Five LED instructions power supply state, signal of energy impulse and direction of the flow of load current.



9. Automatic detection the direction of the flow of load current. When the yellow LED display, that is meaning the direction of the flow of load current reverse.



10. Single direction three component measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.



11. Direct connect operation, type 16B wiring, may select three phase three wire, direct connect operation, type 13B wiring (Product Configuration code is PD).



12. Front board three fixed installation, standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is PA).



Dimension



ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader



Wiring Diagram


ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader
ISO9001 4 Wire 3 Phase Prepaid Energy Meter With IC Card + Card Reader
