CIU & UIU STS Split Type Three Phase Prepaid Energy Meter four wire prepayment

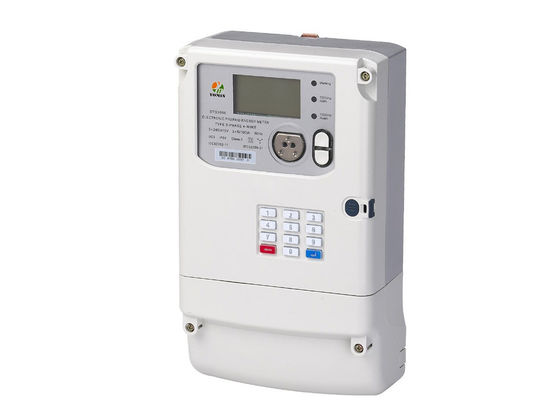

Model DTSY666-NEW STS phase keypad prepayment energy meter is new type of three phase four wire prepayment meter. The meter has photoelectric communication port, according with the standard IEC62056-21. It can accurately measure total active energy consumption, remaining electricity quantity, voltage and so on. It is very easy to operate the meter. User will get a series of 20 bits code TOKEN after purchasing electricity from electricity selling department, then recharge successfully by correctly input 20-digit TOEKN code with the buttons on the meter. Besides, the meter can detect electricity theft, reverse connection, meter cover opening, terminal cover opening and etc, protecting meter from electricity theft.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. The meter can measure forward active energy consumption, backward active energy consumption, voltage, current, instantaneous power and etc;.

2. The meter has 64K NV EEPROM, can record total energy consumption, remaining electricity quantity, events and recharge;

3. The LCD screen can show remaining electricity quantity, to remind user to purchase electricity;

4. Balance alarm can be set by user according to his own need;

5. With photoelectric communication port, user can read and set parameters of the meter through the PC software;

6. The meter can detect reverse connection of zero line and live line, take the absolute value and calculate the power consumption;

7. The meter can detect more than 400mT magnetic field, LCD shows status of electricity theft and record;
