Three Phase Front Board Installed Electromechanical Energy Meter 3 x 230 / 400V
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Width: | 166mm | Tariff: | Single |
|---|---|---|---|
| Measuring Energy Range: | 0~999999kwh | Operating Temperature: | -30℃~50℃ |
| RS485: | Yes | Far Infared: | Yes |
| High Light: | Electromechanical KWH Meter,Electromechanical Energy Meters |
||

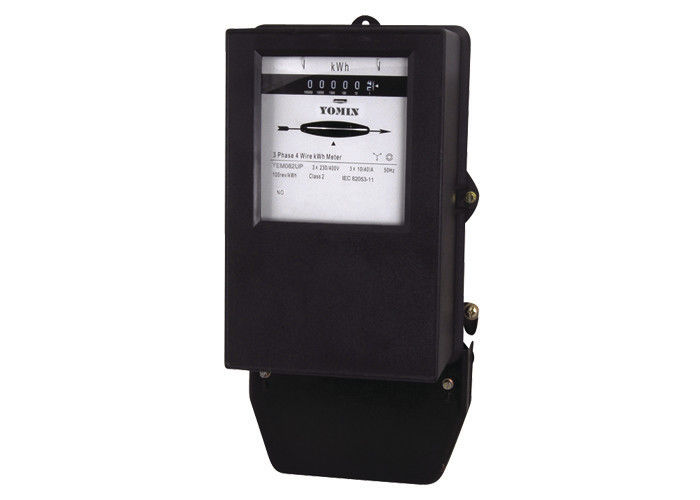

Three Phase Front Board Installed Electromechanical Energy Meter 3 x 230 / 400V
Product Description
Model YEM082UP three phase four wire electromechanical front board installed active energy watt-hour meter is a kind of new style three phase four wire active energy watt-hour meter, it is on the basis of original D86 three phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 three phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Specification
|
Model |
Accuracy |
Reference Voltage |
Current Specification |
Starting Current |
Insulation Performance |
|
YEM082UP |
Class 2 |
3×127/220V 3×230/400V |
5(20)A 10(40)A 20(80)A 30(100)A |
0.025A 0.05A 0.1A 0.15A |
AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv |
* If you need different reference voltage or current specification, please advisory our sales personnel.
Competitive Advantage
1. Front board two fixed installation, the cover is made ABS engineering plastics molded overall which has a transparent glass window, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration the meter adopt double gem bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: long-life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is UD).
5. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjusted which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 6 digits display by drum wheel mechanical register, may select 7 digits display by drum wheel mechanical register (Product Configuration code is UV).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Three components measure three phase four wire active energy consumption. Complying with standard IEC 62053-11.
9. Standard configuration for direct connect operation, type 16B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is UQ), type 48B wiring, and PT & CT (Product Configuration code is UR), type 48B wiring for operation.
10. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is TP).

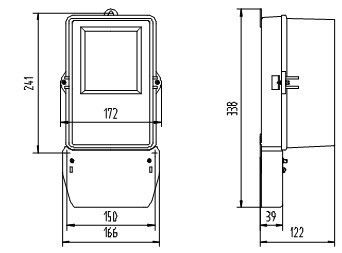

Dimension
Wiring Diagram
Why Choose Us?
We are the manufacturer specializing in producing all kinds of energy meters.With modern production plants and office buildings, our company has introduced the first-class American and European production equipment and top Hi-Tech; set up a scientific, systematized and standardized quality management system; safety appliance; and obtained the production permit of nationwide industrial production.We have won the international certificate, such as CE, RoHS, ISO9001.
