Active Single Phase Electricity Prepayment KWH Meter with IC Card 220V

China Active Single Phase Electricity Prepayment KWH Meter with IC Card 220V supplier

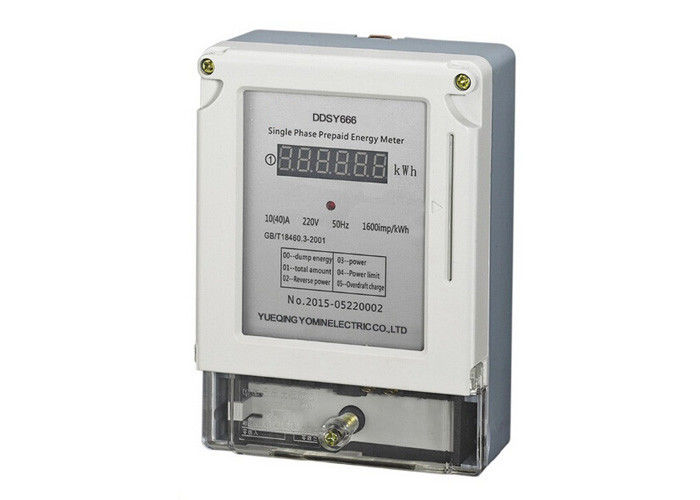

Large Image :  Active Single Phase Electricity Prepayment KWH Meter with IC Card 220V

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS/STS
Model Number: DDSY666

Payment & Shipping Terms:

Minimum Order Quantity: 10pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Model Number: YEM091 Display Type: Counter Displays
Output Voltage: 5(20), 5(30), 10(40),10(60),15(60)A Accuracy Class: Class 1.0 Or Class 2.0
Phase: 1 Phase Frequency: 50/60HZ
Standard: IEC62053-21 And DIN EN50022 Conncetion Type: Directly Connect

Single Phase Active Electricity Prepayment KWH Meter with IC Card 220V



Product Description

DDSY single phase electronic prepayment watt hour meter uses advanced specific integrated circuits. It uses full automatic surface mounted technology (SMT). The design of circuit and the selection of components are in accordance with the biggest environmental tolerance. It can guarantee long term and stable operation. It has high precision, high overload, low power consumption and high reliability. It can realize on and off of load and urge the user to use electricity after purchasing through control relays.



Features

1. Two-way measure, measure power accurately both forward  and reverse direction, and measure in one         way

2. Prepaid first, work sooner, it will give an alarm when the electric quantity lower than Windows default and       cut off the electricity when fail to pay.

3. Digital code scope displays the used energy and dump energy

4. Memory function: data can be saved 10 years above

5. Strongly Discern the unsuitable card, display” Err” when insert the error card

6. MAX store :9999 kWh

7. Use normal contactor type IC card, IC service life: 10 thousand times



Specification

Current specification A 1.5(6)A,2.5(10)A,5(20)A,10(40)A,15(60)A
Reference voltage V 220
Degree of accuracy 1.0 / 2.0 degree
Power consumption potential circuit ≤2W/10VA, galvanic circle ≤4VA
Shape size L*W*H(mm) 165*110*66
Install size 140*88
