Payment & Shipping Terms:
|Usage:||Power||Coil Number:||One, We Can Make It As Per Customer|
|Main Material:||Plastic Cover, Copper||Business Type:||Manufacturer|
|Free Sample:||Yes||Product Name:||Current Transformer With BH-0.66Ⅲ|

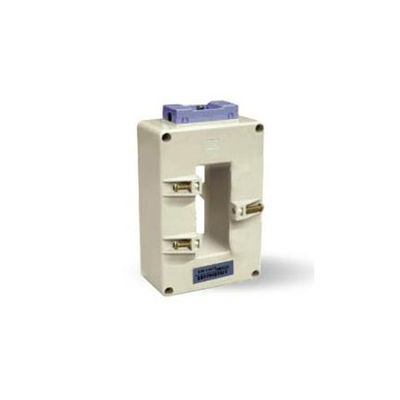

Mini Lv Current Transformers , Weightless 25 / 5a Current Transformer Class 0.5

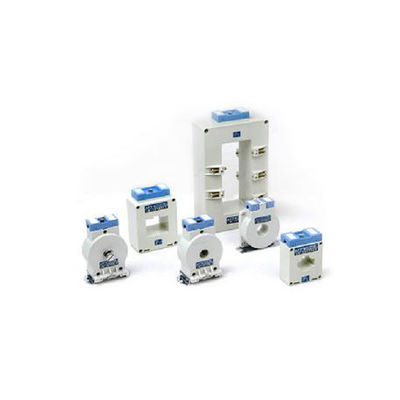

BH-0.66 III series current transformer is new in its magnetic circuit design, advanced in compensation method, exquisite in technology, safe and reliable in performance, small in appearance, and generally used for control, protection and measurement.
The shell is made of high strength flame retardant PC, totally enclosed structure and flame retardant grade V1.
High quality silicon steel sheet is selected for inner core.

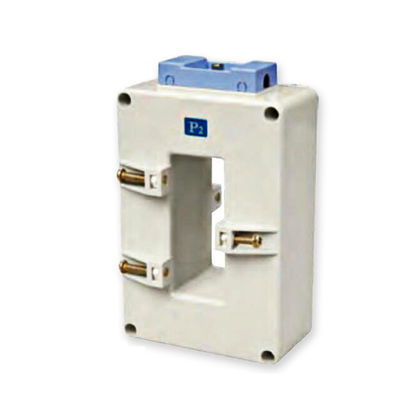

The vertical square pass is suitable for crossing single or multiple vertical busbars.
It is mainly used when the three-phase bus bar is arranged vertically, so as to avoid the inconvenience caused by the obstruction of the two outlets by adjacent busbars or transformers.
High precision and large capacity;
It is simple and convenient, and the wiring optimization is in line with the requirements of the electric energy metering of the power supply system.
1. Rated primary current: 5-3000A; Rated secondary current: 5A, 1A
2. Rated voltage: AC 660V
3. Rated frequency: 50-60Hz
4. Ambient temperature: -30℃- +50℃
5. Altitude: ≤3000m
6. Power frequency withstand voltage: 3000V/1min, 50Hz(between cover and secondary winding).
