Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety

China Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety supplier
Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety supplier Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety supplier Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety supplier

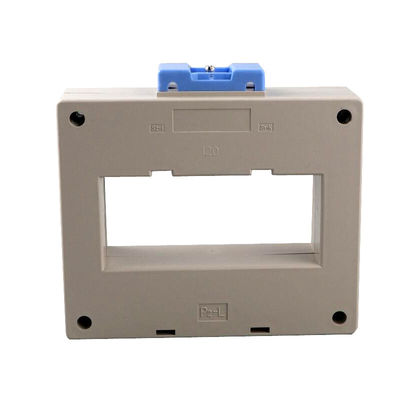

Large Image :  Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety

Product Details:

Place of Origin: ZHEJAING, CHINA
Brand Name: YOMIN
Certification: CE
Model Number: LMZ1-0.5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: conferential
Packaging Details: carton
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Paypal, West Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Material: Copper Color: Red
Type: LMZ1 Mini Transformer Usage: Current
Rated Primary Current:: 5-3000A Transformer Accuracy Level: 0.5
Rated Voltage: 0.66KV Rated Secondary Current:: 1 A. 5A



Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety



small current transformer with split core current transformer



BH-0.66 II series current transformer is new in its magnetic circuit design, advanced in compensation method, exquisite in technology, safe and reliable in performance, small in appearance, and generally used for control, protection and measurement.

The shell is made of high strength flame retardant PC, totally enclosed structure and flame retardant grade V1.

High quality silicon steel sheet is selected for inner core.

The line diameter is selected strictly according to the economic current density to ensure that the temperature rise is less.

Advanced and reliable testing equipment to ensure compliance with quality standards;

The horizontal square pass is suitable for multiple bus bars and multiple cable traversing.

The product range is full, specifications and perforation size can be modified as required.



Technical Parameter



1) Rated Primary Current: 50-10000A; Rated Secondary Current:5A,1A

2).Rated voltage: AC 660V

3).Rated Frequency:50-60Hz

4).Ambient temperature:-30℃-+55℃.

5).Altitude:≤3000m

6).Power frequency withstand voltage:3000V/1min,50Hz(Between Cover and Secondary winding)

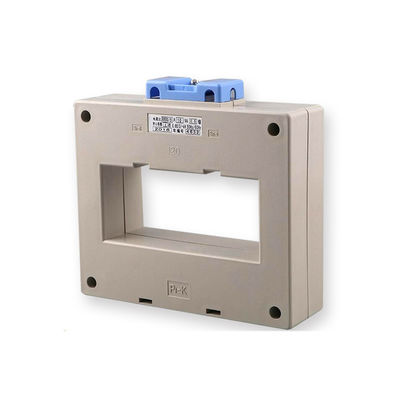

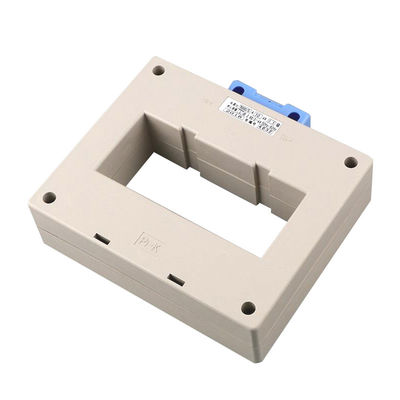

Picture:

Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety

Drawing and Size:

Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety

Small Split Core LV Current Transformers , Ac Ct Current Transformer Safety

Specification



Model No. Outlime Dimension Pwetra!* Dimwaor   Installation
•vV H D A E w
40 II 75 105 45 42 32 45 B,D
50 II 87 105 45 52 32 40 B,D
60 II 98 116 45 62 32 42 C,E
80 II 118 120 45 82 32 60 C,E
10011 140 130 49 102 32 80 C,E
13011 176 133 46 136 36 33 40 33 C,E
18011 225 133 48 182 37 45 45 45 C,E
20011 244 133 50 204 35 50 50 50 C,E
60X50 II 100 141 46 62 52 42 C,E
80X50 II 120 141 46 82 52 60 C,E
100X5011 142 150 49 102 53 80 C,E
120X5011 167 151 49 122 S3 80 C,E
220X50U 280 190 60 225 55 65 55 65 C. E
170X10011 257 220 60 172 105 45 75 40 C,E

1 .Rated Primary Current:50-10000A; Rated Secondary Current:5A, 1ATechnical Data



  Rated voltage: AC 660V

  Rated Frequency: 50-60Hz

  Ambient Temperature: -30<C-+55t

  Altitude:3000m

Power frequency withstand voltage(Between Cover and Secondary winding): 3000V/1 min, 50Hz
