Single Phase Low Current CT Current Transformer 100 5a For Metering System

China Single Phase Low Current CT Current Transformer 100 5a For Metering System supplier
Single Phase Low Current CT Current Transformer 100 5a For Metering System supplier Single Phase Low Current CT Current Transformer 100 5a For Metering System supplier Single Phase Low Current CT Current Transformer 100 5a For Metering System supplier

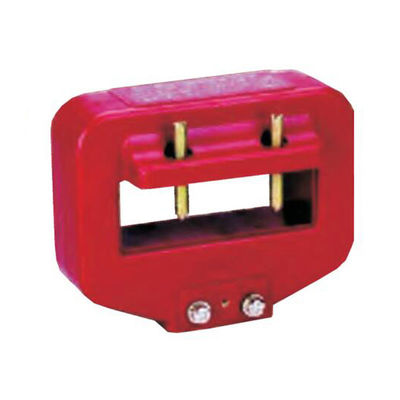

Large Image :  Single Phase Low Current CT Current Transformer 100 5a For Metering System

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: YOMIN
Certification: CE, ROHS
Model Number: LMZJ1-0.66

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: it can be negotiated
Packaging Details: carton
Delivery Time: shipped in 2-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Phase: Single Phase Coil Number: Autotransformer
Coil Structure: Toroidal Business Type: Manufacturer
Free Sample: Yes Product Name: Current Transformer With LMZJ1-0.66



Single Phase Low Current CT Current Transformer 100 5a For Metering System



Product Description:



Current transformer LMZJ1-0.66 letter meaning L current transformer M main line Z casting insulation J increase capacity 1 design serial number 0.66 rated voltage (kV). Mainly used for indoor, rated voltage of 0.66kV and below the rated frequency of AC circuit 50Hz as current and electric energy measurement and relay protection, products for the casting type current transformer, the installation method adopts bus fixed installation method, LMZJ transformer insulated busbar for casting core wound with two windings the lower part of a base, fixed for use.



Technical Parameter:



1, The current transformers are in accordance with GB1208 and IEC60044-1 standards
2, Rated voltage 0.66kV
3, Rated secondary current 5A or 1A
4, Rated frequency 50Hz or 60Hz
5, Ambient temperature -5℃-+40℃



Characteristic

The utility model relates to a cast insulated bus type, and the iron core is wound with two windings.
current transformer LMZJ1-0.66 is mainly used for indoor, rated voltage of 0.66kV and below the rated frequency of AC circuit 50Hz as current and electric energy measurement and relay protection, products for the casting type current transformer, the installation method by bus fixed installation method.





Rated current Rated output (VA) Np
ratio (A) 0.5 0.5S 0.2 0.2S
100/5 5       1
150/5 5 5 5 5 1
200/5 5 5 5 5 1
250/5 5 5 5 5 1
300/5 5 5 5 5 1








Rated current Rated output (VA) Np
ratio (A) 0.5 0.5S 0.2 0.2S
150/5 5       1
200/5 5 5     1
250/5 5 5 5   1
300/5 5 5 5 5 1
400/5 5 5 5 5 1


























Single Phase Low Current CT Current Transformer 100 5a For Metering SystemSingle Phase Low Current CT Current Transformer 100 5a For Metering SystemSingle Phase Low Current CT Current Transformer 100 5a For Metering System
