High Accuracy Single Phase Din Rail KWH Meter for Residential Application

High Accuracy Single Phase Din Rail Energy Meter / KWH Meter for Residential Application

Product Description

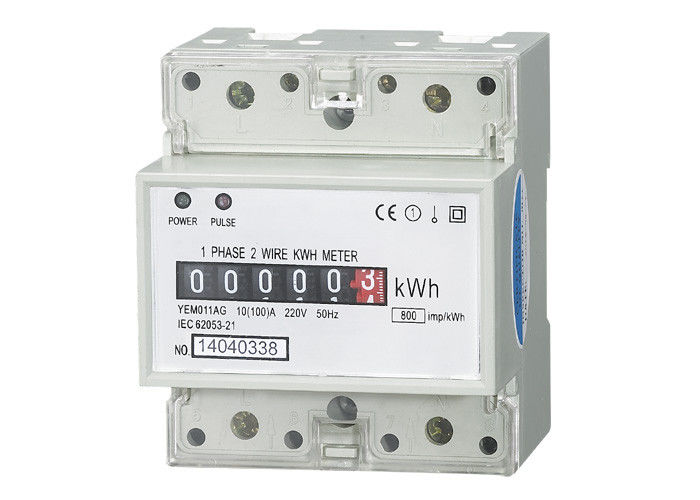

Model YEM011AG high accuracy single phase din rail energy meter s a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It is mainly for residentail applications. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. 35mm standard DIN rail installation, complying with standard DIN EN50022.  .

2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

3. Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is AK).

4. Standard configuration one port of pulse output passive (polarity),May select increase a distant port of pulse output passive (nonpolarity), (Product Configuration code is AI). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.

5. Two LED instructions power supply state (green) and signal of energy impulse (red).

6. Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working, that is meaning the direction of the flow of load current reverse).

7. Directly connect operation, there is two types wiring you may select. Standard configuration type S wiring, may select type T wiring (Product Configuration code is TG).

8. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is AH).

9. All the components adopted in the meter are of high quality, which guarantee the meter a long

service life and high reliability.

10. We are the professianl manufacturer of various kinds of din rail energy meters, and we can offer OEM and ODM service, providing production service and technical support for major and medium-sized enterprises.
