Household Active 2 Wire Din Rail Single Phase Energy Meters With LCD Display
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Phase: | Single | Wire: | Two |
|---|---|---|---|
| Basic Current: | 5A 10A 20A | Max Current: | 30A 50A 100A |
| Display: | LCD | Color: | White |
| Highlight: | din rail watt hour meter,din rail energy meter |
||

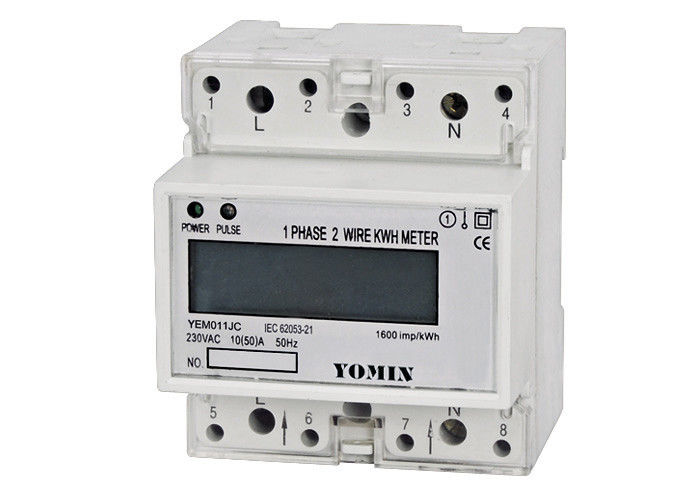

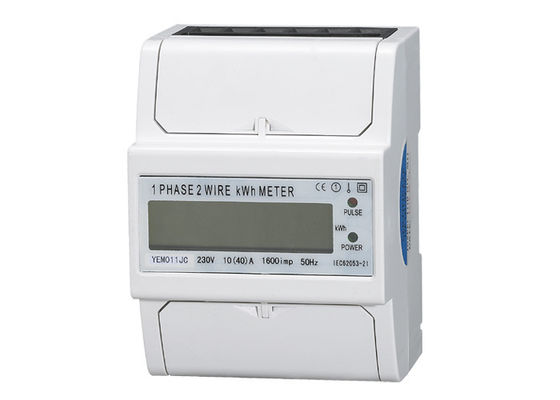

CE Approved Active 1 Phase 2 Wire Din Rail Energy Meter With LCD Display for Household
Product Description:
Model YEM011JC is 1 Phase 2 Wire Din Rail Energy Meter. It adopts many advanced technologies of research and development, like micro-electronics techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technology, and so on. The meter is produced as per relevant technical requirements of international standard IEC 62053-21. It has class one high accuracy. You can select 35mm DIN rail installation or install it on the board. This energy meter is intended for househould use.
Specification
|
Model |
Accuracy |
Reference Voltage |
Current Specification |
Starting Current |
Insulation Performance |
|
YEM011JC |
Class 1 |
127/230V |
5(30)A 10(50)A 20(100)A |
0.02A 0.04A 0.08A |
AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv |
* If you need different reference voltage or current specification, please advisory our sales personnel.
Competitive Advantage
1. 35mm standard DIN rail installation.
2. The meter can accurately measure and display total active energy consumption by LCD Display.
3. LCD display 6+1 display default, also can make it 5+2 (two decimal) dispaly.
4. Standard configuration Impulse output passive (polarity),May select distant impulse output passive (no polarity). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.
5. Two LED instructions respectively power supply state (green) and signal of energy impulse (red)
6. Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And instructions by an individual LED.
7. The meter adopts latest imported integrated-circuit exclusively for electrical energy with digital
multiplier, which has greatly improved the dynamic working range of the meter and make the actual
overload capacity up to more than 10 times.
8. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of connection, and use CT (Product Configuration code is IC) and PT & CT (Product Configuration code is HC) for operation.
9. Extension terminals cover is available, in order to ensure safety.
Dimension
Wiring Diagram
