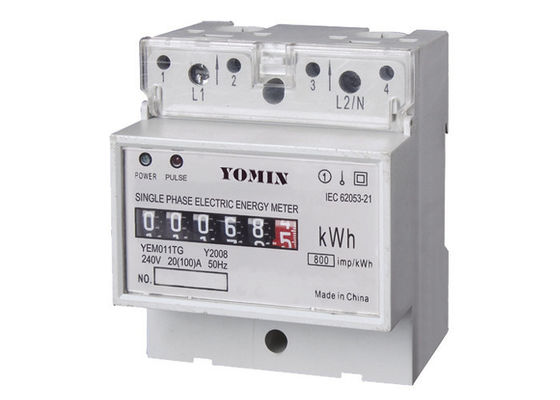

Class 1 Accuracy Single Phase Two Wire Analog Din Rail Energy Meter with Pulse Output

Class 1 Accuracy Single Phase Two Wire Analog Din Rail Energy Meter with Pulse Output

Product Description:

Model YEM011TG is the new type single phase two wire analog din rail energy meter. It can diaplay total

by step motor type impulse register. Its performance is in confirmity with the technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It is generally used in 50Hz or 60 Hz single phase AC electricity net. It can choose two different installation method, 35mm din rail installation and front board mounting. The meter is installed indoors. The site conditions shall be assumed as follows: The ambient temperature is –25~55℃, relative humidity is not more than 95%. There isn’t heavy corrosive gas or any influence of dust, mold and insects etc. Besides, we have got CE  and RoHS certifiacte for this meter.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. Measure active power consumption, do not need calibrate for long-time operation.

2.  35mm DIN rail installation, complying with standard DIN EN50022.

3. 5+1 digits display (99999.1kWh) by step motor type impulse register.

4. Standard configuration one port of pulse output passive (polarity),May select  increase a distant port of pulse output passive (nonpolarity), (Product Configuration code is TI).

5. Adopt high reliability and long life electroniccomponents, so the Meter assume feature of high reliability and long life.

6. You can select automatic detection of the direction of load current flow.

7. Single direction measure single phase two wire active energy consumption. Complying with standard IEC 62053-21.

8. Directly connect operation, you can choose two types of wiring, standard T type and S type.

9. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is TH).

10. We are the professional energy meter manufacturer and have more than 20 years export experience of all kinds of energy meter. Whenever you have any question or concern, you can contact us.

Dimension

Wiring Diagram
