Convenient Installation Round Electric Meter Accessories Meter Base

Name: Convenient Installation Round Electric Meter Accessories Meter Base
Brand: YOMIN
SKU: YM-100R-E1
Rating: 4.6 (158 reviews)

Convenient Installation Round Electric Meter Accessories Meter Base supplier

Large Image : Convenient Installation Round Electric Meter Accessories Meter Base

Product Details:

Place of Origin:	China
Brand Name:	YOMIN
Certification:	CE/RoHS
Model Number:	YM-100R-E1

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	negotiation
Packaging Details:	Export Standard Seaworthy Packing
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	50000 per month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Brand Name:	YOMIN
Model Number:	YM-100R-E1	Rated Voltage:	120/240V
Rated Current:	100A	Application:	Residential / General-Purpose
Wire:	Two/Three	Color:	Gray Or Customized
High Light:	electric Meter Accessories , electric Meter parts

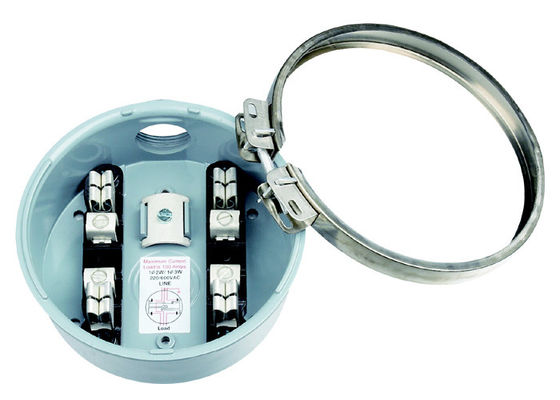

Convenient Installation Round Electric Meter Socket or Meter Base

Product Description:

General Electric, Kilowatt Hour Meter Socket - Cast Round, 100A, 120/240VAC, NEMA 3R. Single phase 2 or 3 wire 100 amp service. Excellent resistance to marring and corrosion. Each meter has a 1" hub opening in the bottom and includes a stainless steel sealing ring.

The Die-cast Aluminium enclosure. Electrostatically applied epoxy and polyester resins, which are baked on. Gray color exterior.
The current carrying parts are made of phosphor copper.
The ground connector is designed to in sure a positive electrical connection by effectively clamping the conductor against a serrated surface.
Fix hub size: 1/2, 3/4, 1, 1-1/4 for option

Housing

Die cast Aluminum electrostatically applied epoxy baked gray powder finished.

Round type base.

NEMA 3R Rating for outdoor use.

Specification

Product No.	Description	Fixed Hubs Size	Features
MT-100B	1Phase,100A120/240Vac,4jaw	1/2"	Copper alloy jwas heavy tinned plated with spring clips
MT-100C	1 Phase,100A,120/240Vac,4jaw	3/4"
MT-100D	1 Phase,100A,120/240Vac,4jaw	1"
MT-100E	1 Phase,100A,120/240Vac,4jaw	1-1/4"

Features

-Line and load lugs: 1/0 max. Cu-Al
-Rating: 100Amp continuous duty, 600VAC
-Bypass: None
-Mounting: Surface, pole outdoor Nema 3R

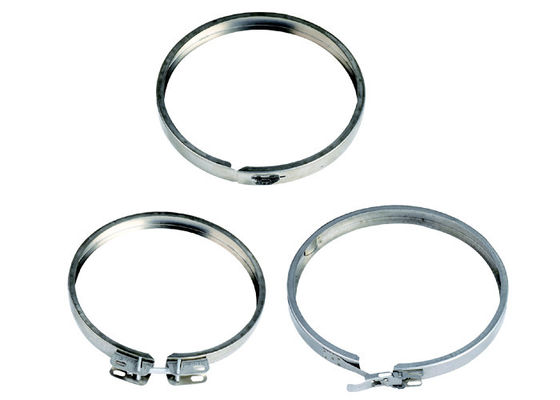

-Sealing ring: Stainless steel, sold separately
-Hub or hub plate: Fixed, top and buttom
-Interiors: Units are supplied with four terminals
-Connectors: Made of carbon steel; screw-type
-Jaws: Heavy duty tin plated copper jaw

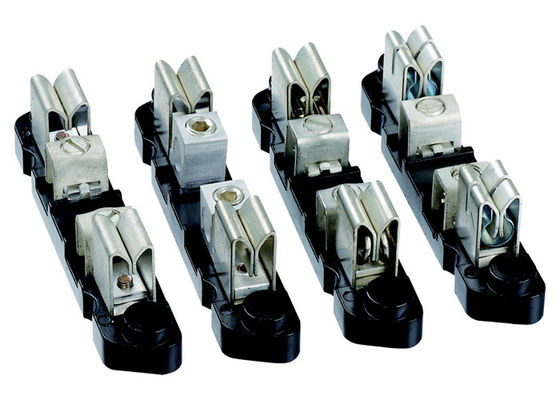

-Blocks: The meter jaw mounting block molded glass-filled polyester with CTI rating of 190
-Enclosure: Die-cast aluminum with gray cathodic epoxy powder finish
-Locking: Sealing ring has lock provision
