Single Phase Stepper Motor Counter Meter Accessories of Plastic

China Single Phase Stepper Motor Counter Meter Accessories of Plastic supplier
Single Phase Stepper Motor Counter Meter Accessories of Plastic supplier Single Phase Stepper Motor Counter Meter Accessories of Plastic supplier Single Phase Stepper Motor Counter Meter Accessories of Plastic supplier

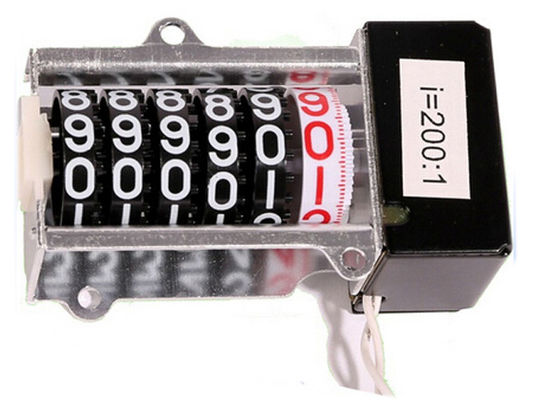

Large Image :  Single Phase Stepper Motor Counter Meter Accessories of Plastic

Product Details:

Place of Origin: China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YMQ-200

Payment & Shipping Terms:

Minimum Order Quantity: 1000pc
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Model Number: YMQ200 200:1, Display: 6+1 Or 5+1
Material: Plastic Applications: For Energy Meter
ODM/OEM: Welcome

Plastic Security Seals, twister meter seal with wire for security



Product Description

It's the key display part for electronic electricity meters.
1. Working in wide temperature range, -40℃ ~ +85℃
2. Metal shielding, against strong magnetic field
3. Patent design with long life more than 15 years under normal working condition
4. High precision and low aging ratio
5. Frame Meterial:
Steel frame is the most reliable type, Ni or Zn plating against oxidation.
Enclosed plastic frame against dust, fire, water,
Aluminum frame is gentle and light, so save shipping cost.
Large digit for special application, very reliable
6. Short delivery time, 200K pieces per month.



Specification

Start Voltage:  2.0V - 3.0VDC
WorkingVoltage: 2.5V - 5.5VDC
Driving Mode: Stepper motor, pulse
Pulse width: 80ms~600ms on request
Coil Resistance at 20℃:  400Ω -500Ω
Max working frequency: <4hz
Ratio: 100:1, 200:1, 400:1, 800:1, 1000:1
Display Type: 4+1, 4+2, 5+0, 5+1, 6+0, 6+1, 7+0
Figures size: 5x3mm or 5x2.5 mm or on request
Figure color:
1) 5+0 / 6+0 ----- Decimal white on red wheel and Integer white on black wheel or
2) 4+1/ 4+2 / 5+1 / 6+1 ----- Decimal red on black wheel and Integer white on black wheel or
Operating Temperature: -40℃ to +80℃



Mainly using for:
1) Multi-funcational energy meter
2) Prepayment energy meter
3) Reactive energy meter
4) Watt-hour meter
5) Multi-rate watt-hour meters
6) Maximum demand energy meter.
7) Standard electric energy meter
8) Meter for industry and home use.
Notes: This is model mainly export India, Russian, Urkrian and Poland. Welcome to contact with us if you want, Thank you for your attention.
