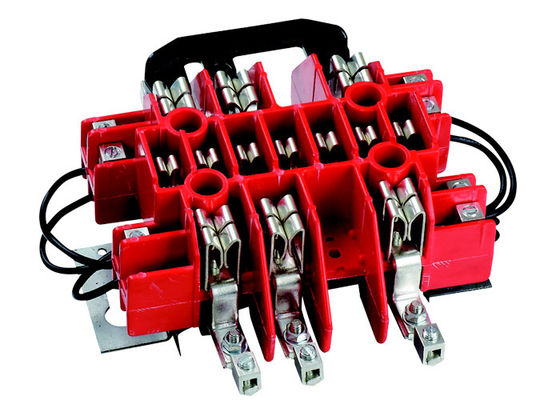

Energy Meter Accessories 20A 13Jaws Ringless Rectangluar Topping Meter Base Socket

Name: Energy Meter Accessories 20A 13Jaws Ringless Rectangluar Topping Meter Base Socket
Brand: YOMIN
SKU: YM-20-13J-RL
Rating: 4.7 (128 reviews)

Energy Meter Accessories 20A 13Jaws Ringless Rectangluar Topping Meter Base Socket supplier

Large Image : Energy Meter Accessories 20A 13Jaws Ringless Rectangluar Topping Meter Base Socket

Product Details:

Place of Origin:	Zhejiang, China (Mainland)
Brand Name:	YOMIN
Certification:	CE/RoHS
Model Number:	YM-20-13J-RL

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	negotiation
Packaging Details:	Standard Exporting Carton
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	50000 per month

Contact Now

Detailed Product Description

Place Of Origin:	Zhejiang, China (Mainland)	Brand Name:	YOMIN
Model Number:	YM-200-4J-R	Rated Current:	20A Meter Base
Rated Voltage:	600V Meter Base	Type:	Electrical Plug
Jaws:	13 Terminal Meter Base Socket	Thickness Of Sheet:	1.2mm Meter Base Socket
High Light:	electric Meter Accessories , electric Meter parts

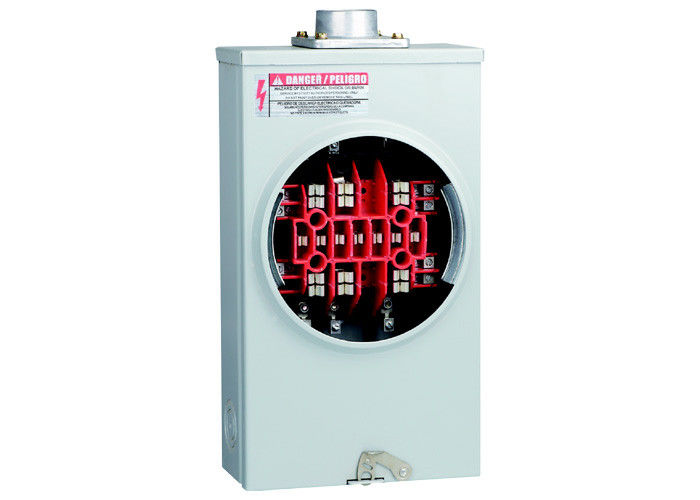

American Type Wall-Mounting Electrical Meter Socket For Plug In Energy Meters

Descrition

The meter base is the enclosure that houses your electric meter. It must keep all the electrical connections and wires inside dry and protected from the elements.

YOMIN's line of single position, self-contained meter sockets house the utilities electrical watt-hour meters in residential and commercial buildings. Sockets work with a circuit breaker distribution section in a rainproof enclosure for residential installations, rural service entrance, mobile homes, and for temporary power on construction sites. Choose from the widest range of utility approved sockets in the industry,including 100-320A units.

Specification

Product number	Description	Outline Dimensions
Product number	Description	H	W	D
YM-20-13J-RL	1 Phase,20A, 13 Terminal, ringless type	355	203	84
YM -20-6J-RL	1 Phase,20A, 6 Terminal, ringless type	355	203	84

Features

20AMP CURRENT TRANSFORMER RATED

By pass: Plunger type bypass automatically closes when meter is removed.

NEMA 3R type construction 1.2mm thickness (#18 gauge) or 1.5mm thickness (#16 gauge) galvanized steel sheet (AISI G90) ,electrostatically applied epoxy baked gray powder finished

Ample gutter space for easy wiring

Convenient knockouts in the side back and bottom

The fixed hub size 1/2” to 2-1/2” for option

Dimension

Energy Meter Accessories 20A 13Jaws Ringless Rectangluar Topping Meter Base Socket
