High efficient Intelligent 3 phase 4 Wire Electronic kwh meter with CT 220V/230V

Name: High efficient Intelligent 3 phase 4 Wire Electronic kwh meter with CT 220V/230V
Brand: YOMIN
SKU: YEM024SJ
Rating: 4.6 (117 reviews)

High efficient Intelligent 3 phase 4 Wire Electronic kwh meter with CT 220V/230V supplier

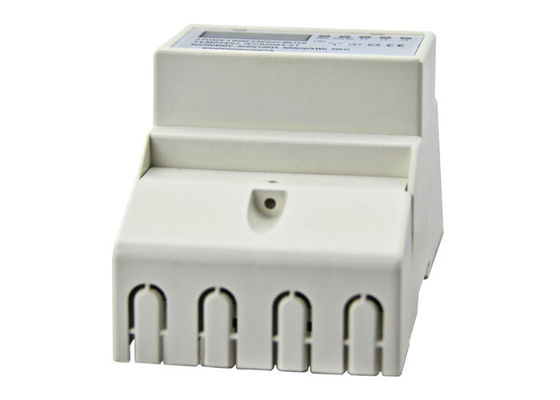

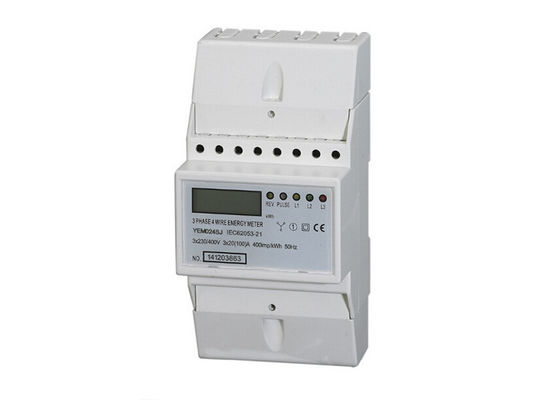

Large Image : High efficient Intelligent 3 phase 4 Wire Electronic kwh meter with CT 220V/230V

Product Details:

Place of Origin:	China
Brand Name:	YOMIN
Certification:	CE/ROHS/STS
Model Number:	YEM024SJ

Payment & Shipping Terms:

Minimum Order Quantity:	10pc
Price:	negotiation
Packaging Details:	standard export carton
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Model Number:	YEM024SJ	Measuring Energy Range:	5(30),10(60),20(100)A
Output Voltage:	3127/220V, 3230/400V	Accuracy Class:	1.0
Phase:	3 Phase	Connection Type:	S Type Or CT Directly Connect
Standard:	IEC62053-21 And DIN EN50022	Dimensions:	230mm144mm76mm
High Light:	din rail watt hour meter , din rail energy meter

3 phase 4 Wire Electronic Pre-paid Watt-hour Meter Complies With IEC 61036

Product Description

Model YEM024SJ three phaseDIN rail active energy meter is a kind of new style three phase four wire electronics active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.

Features

• 35mm standard DIN-rail installation, complying with standard DIN EN50022.

• Four ple width (Modulus 17.5mm), complying with standard DIN43880.

• Standard configuration 6+1 digits display(999999.1kWh) by step motor type impulse register.

May select 5+1 digits display (99999.1kWh).

• Standard configuration pulse output passive(polarity), may select distant impulse output passive

(nonpolarity). And contact with all kind of AMR system conveniently, complying with standard IEC

62053-31 and DIN 43864.

• Four LED respectively instructions every power supply state and singal of energy impulse.

Specification

Model	YEM024SJ
Accuracy	1.0
Reference voltage	3127/220V,3230/400V
Current specifictions(A)	5(100)A
Starting current(A)	0.02A
Insulation performance	AC voltage 4KV for 1 minute, 1.2/50us waveform impulse voltage 6 KV
