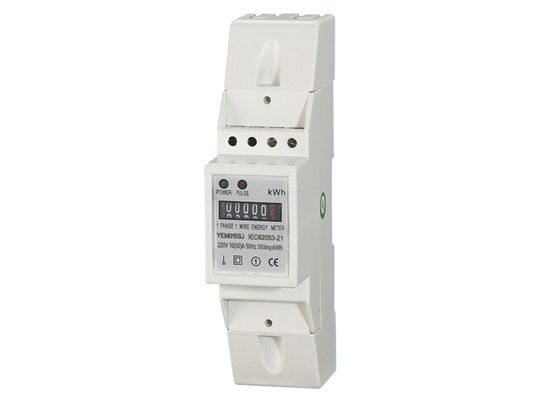

Plc Electronic Energy Meter Single Phase with Electromagnetic Counter Display

Name: Plc Electronic Energy Meter Single Phase with Electromagnetic Counter Display
Brand: YOMIN
SKU: YEM015SJ
Rating: 4.7 (186 reviews)

Plc Electronic Energy Meter Single Phase with Electromagnetic Counter Display supplier

Large Image : Plc Electronic Energy Meter Single Phase with Electromagnetic Counter Display

Product Details:

Place of Origin:	China
Brand Name:	YOMIN
Certification:	CE/ROHS/STS
Model Number:	YEM015SJ

Payment & Shipping Terms:

Minimum Order Quantity:	10pc
Price:	negotiation
Packaging Details:	standard export carton
Delivery Time:	5-30 working days after receiving payment
Payment Terms:	T/T or western Union, L/C, D/A, D/P, T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Model Number:	YEM015SJ	Display Type:	Counter Displays
Output Voltage:	3127/220V, 3230/400V	Accuracy Class:	1.0
Phase:	1 Phase	Frequency:	50/60HZ
Standard:	IEC62053-21 And DIN EN50022	Starting Current:	0.08A
High Light:	din rail watt hour meter , three phase watt hour meter

Plc Single Phase Electronic Energy Meter with Electromagnetic Counter Display

Product Description

YEM015SJ type single-phase din-rail energy meter can accurately and directly measure 50Hz/60Hz active energy from single phase AC electricity net. Also with functions of good reliability, small volume, light weight, specious appearance, convenient installation, etc. All of the performances accord with the National Standard GB/T17215.321-2008 and International Standard IEC62053-21.

Features

• 35mm standard DIN-rail installation, complying with standard DIN EN50022.

• Four ple width (Modulus 17.5mm), complying with standard DIN43880.

• Standard configuration 6+1 digits display(999999.1kWh) by step motor type impulse register.

May select 5+1 digits display (99999.1kWh).

• Standard configuration pulse output passive(polarity), may select distant impulse output passive

(nonpolarity). And contact with all kind of AMR system conveniently, complying with standard IEC

62053-31 and DIN 43864.

• Four LED respectively instructions every power supply state and singal of energy impulse.

Specification

Model	YEM015SJ
Accuracy	1.0
Reference voltage	127V,230V
Current specifictions(A)	10(100)A
Starting current(A)	0.04A
Insulation performance	AC voltage 4KV for 1 minute, 1.2/50us waveform impulse voltage 6 KV
