230V 50Hz Three Phase Din rail KWH Watt Hour Energy Meter with LCD Display

5(32)A 230V 50Hz Three Phase Din rail KWH Watt Hour Energy Meter with LCD Display

Product Description

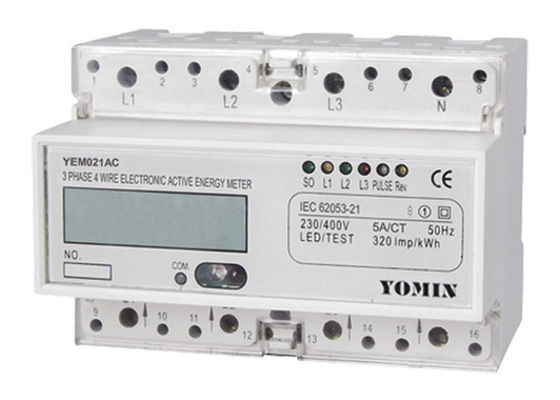

YEM021AC Din rail three-phase electronic type watt-hour meter adopts the advanced SMT process and solid-state integrated circuit technology of ultra-low power consumption, it is used to measure the active electric energy of single-phase AC 50Hz, all technical indexes are in conformity with GB/T17215.321-2008 Electricity metering equipment (a.c.) – Particular requirements - Part 21: Static meters for active energy (classes 1 and 2) on single-phase static watt-hour meter.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Features

1.Measure three-phase active electric energy,do not need calibrate for long-term operation
2.Three phase power supply,loss one(any one wire of three-wire)or two(any two wire of four-wire) phase, uninfected measurement
3.Wide service temperature range
4.Assuming function of defect phase indication or voltage indication


Dimension

Wiring Diagram
