CT Operated AC Ammeter Analog Panel Meters , Analog Ammeter Operation With Pointer

China CT Operated AC Ammeter Analog Panel Meters , Analog Ammeter Operation With Pointer supplier
CT Operated AC Ammeter Analog Panel Meters , Analog Ammeter Operation With Pointer supplier CT Operated AC Ammeter Analog Panel Meters , Analog Ammeter Operation With Pointer supplier

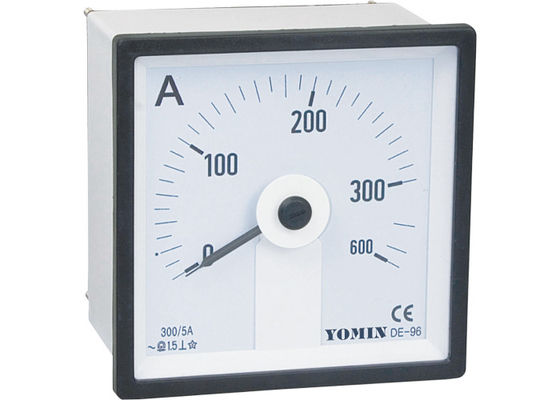

Large Image :  CT Operated AC Ammeter Analog Panel Meters , Analog Ammeter Operation With Pointer

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: DG-A96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: polybag+paper box+carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Display Type:: Analog Only Measuring Range:: 5~6000A
Dimensions: 96 * 96 , 72 * 72 Supply Voltage:: 220V
Accuracy Class: 1.5 Operating Temperature: - 25℃ ~ + 40℃
Measuring Range: 45Hz-65Hz Weight:: 0.27 Kgs/unit

CT Operated AC Ammeter Analog Panel Meter ,  Analog Ammeter Operation With Pointer

Description

Reference Standards:
EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780

Auxilary power supply
The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz

Zero Correction
A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.

Casing
The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.
The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.

Specification

Model

Frame Size (mm)

Mode

Measuring Range

Class Index

Case Qty.(Pcs)

CT Operated AC Ammeter

DG-A96

96X96

X/5A

5~6000A

1.5

48

DG-A72

72X72

x/5A

5~6000A

1.5

48

Note: x/1A upon request, using with external CT.

Direct Input AC Voltmeter

DG-V96

96X96

-

30~500V

1.5

48

DG-V72

72X72

-

30~500V

1.5

48

Frequency Meter

DG-F96

96X96

220V

45~65Hz

1.5

48

DG-F72

72X72

220V

45~65Hz

1.5

48

Note: Please mention the voltage when ordering, our standard voltage are
110V, 220V, 380V, 415V, Special voltage upon request.

Power Factor Meter

DG-PF96

96X96

1P

0.5cap-1.0-0.5ind

2.5

48

DG-PF96

96X96

3P

0.5cap-1.0-0.5ind

2.5

48

DG-PF72

72X72

1P

0.5cap-1.0-0.5ind

2.5

48

DG-PF72

72X72

3P

0.5cap-1.0-0.5ind

2.5

48

Note: Please mention the voltage when ordering.

Power Meter

DG-W96

96X96

1P

Upon request

1.5

48

DG-W96

96X96

3P3W

Upon request

1.5

48

DG-W96

96X96

3P4W

Upon request

1.5

48

DG-W72

72X72

1P

Upon request

1.5

48

DG-W72

72X72

3P3W

Upon request

1.5

48

DG-W72

72X72

3P4W

Upon request

1.5

48

Note: Please mention the voltage and watts when ordering.
