Class 2.5 80 Size Dc Voltage Meter , Analog Moving Iron Ammeter AC

China Class 2.5 80 Size Dc Voltage Meter ,  Analog Moving Iron Ammeter AC supplier
Class 2.5 80 Size Dc Voltage Meter ,  Analog Moving Iron Ammeter AC supplier Class 2.5 80 Size Dc Voltage Meter ,  Analog Moving Iron Ammeter AC supplier Class 2.5 80 Size Dc Voltage Meter ,  Analog Moving Iron Ammeter AC supplier

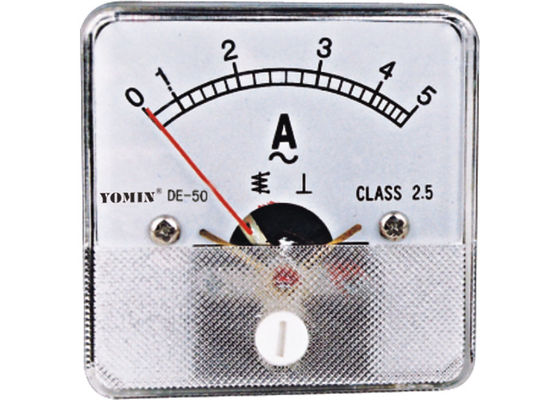

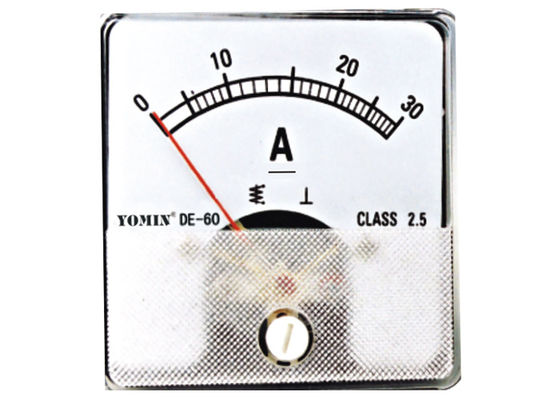

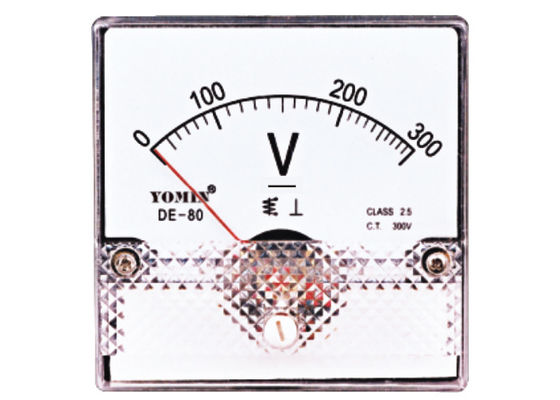

Large Image :  Class 2.5 80 Size Dc Voltage Meter , Analog Moving Iron Ammeter AC

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: DG-A96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: polybag+paper box+carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Display Type:: Analog Only Measuring Range:: 5~6000A
Dimensions: 96 * 96 , 72 * 72 Supply Voltage:: 220V
Accuracy Class: 1.5 Operating Temperature: - 25℃ ~ + 40℃
Measuring Range: 45Hz-65Hz Weight:: 0.27 Kgs/unit

Class 2.5 80 Size Dc Voltage Meter ,  Analog Moving Iron AC Ammeter

Description

Standards:

IEC51, IEC61010-1,  BS89, NE60051, DIN43780

Cases:

Temperature influence:

All cases at least dust and splash water-proof.
All cases are made of strengthened self-extingushing PPO
With a high hit-resistance and a maximum electric isolation

All instruments operate trouble-free at room temperature ranging from -25 to + 40.
The Max. Voltage to earth Voltmeter-The upper range voltage (full scale deflention)
Ammeter-The Voltage of the main power supply.
The meter used shall be keep cleaning. The user shall be made aware that, if the meter is used in a manner not specified by the manufacturer, the protection provided by the meter may be impaired.

Accuracy class:

AC, DC Voltmeters and Ammeters comply with the accuracy class 1.5.
The power meters comply with accuracy class 1.5.
The frequency meters comply with accuracy class1.0.
The maximum-demand meters comply with accuracy class 3.0.
The power factor meters and synchroscope meter comply with accuracy class 2.5.

Insulation test:

Mounting angle:

The insulation test is carried out at a voltage of 2KV, 50Hz 1 min and applies for instruments with the full scale deflection up to 650V. Other standards comply with IEC61010-1.

The instruments are calibrated for vertical mounting, unless other positions such as horizontal or inclined at any specified angle to the horizon. can be provided upon request (in this case, specify angle of inclination, please) The accuracy class refers to the specified mounting angle only.




Zero Correction
A zero corrector is provided on the front panel of the meter, which can adjust the pointer to the zero position.

Casing
The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.
The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.
