Square Moving Iron Analogue Panel Meters Direct Input AC Ammeter

China Square Moving Iron Analogue Panel Meters Direct Input AC Ammeter supplier

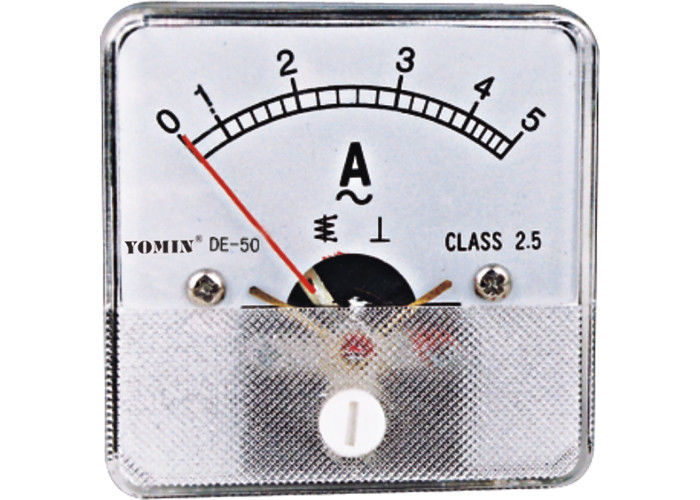

Large Image :  Square Moving Iron Analogue Panel Meters Direct Input AC Ammeter

Product Details:

Place of Origin: Zhejiang , China (Mainland)
Brand Name: YOMIN
Certification: CE/RoHS
Model Number: DG-A96

Payment & Shipping Terms:

Minimum Order Quantity: 100 Pieces
Price: Negotiation
Packaging Details: polybag+paper box+carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 60000 per month
Contact Now
Detailed Product Description
Display Type:: Analog Only Measuring Range:: 5~6000A
Dimensions: 96 * 96 , 72 * 72 Supply Voltage:: 220V
Accuracy Class: 1.5 Operating Temperature: - 25℃ ~ + 40℃
Measuring Range: 45Hz-65Hz Weight:: 0.27 Kgs/unit

50 * 50 Square Meter Analog Moving Iron AC Ammeter , Direct Input AC Ammeter

Description

Reference Standards:
EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780

Auxilary power supply
The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz

Zero Correction
A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.

Casing
The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.
The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.

Specification

Model

Frame Size (mm)

Mode

Measuring Range

Class Index

Case Qty.(Pcs)

Direct input AC Ammeter

DT-DA50

50x50

-

5~50A

2.5

200

DT-DA60

60x60

-

5~50A

2.5

150

DT-DA67

60x70

-

5~50A

2.5

150

DT-DA80

80x80

-

5~60A

2.5

100

CT Operated AC Ammeter

DT-A50

50x50

X/5A*

5~6000A

2.5

200

DT-A60

60x60

X/5A*

5~6000A

2.5

150

DT-A67

60x70

X/5A*

5~6000A

2.5

150

DT-A80

80x80

X/5A*

5~6000A

2.5

100

CT Operated AC Ammeter

DT-A50

50x50

-

300V; 500V

2.5

200

DT-A60

60x60

-

300V; 500V

2.5

150

DT-A67

60x70

-

300V; 500V

2.5

150

DT-A80

80x80

-

300V; 500V

2.5

100

Direct input DC Ammeter

DC-DA50

50x50

-

50μA~30A

2.5

200

DC-DA60

60x60

-

50μA~30A

2.5

150

DC-DA67

60x70

-

50μA~30A

2.5

150

DCDA80

80x80

-

50μA~30A

2.5

100

Shunt operated DC Ammeter

DC-A50

50x50

x/60mV*

5~6000A

2.5

200

DC-A60

60x60

x/60mV*

5~6000A

2.5

150

DC-A67

60x70

x/60mV*

5~6000A

2.5

150

DC-A80

80x80

x/60mV*

5~6000A

2.5

100



DC-V50

50x50

-

50mV~500V

2.5

200

DC-V60

60x60

-

50mV~500V

2.5

150

DC-V67

60x70

-

50mV~500V

2.5

150

DC-V80

80x80

-

50mV~500V

2.5

100
