Home ProductsDin Rail KWH Meter

YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ

Certification
Good quality Ceramic Tile Spacers for sales
Good quality Ceramic Tile Spacers for sales
we received the goods with nice packing and reliable quality, please ship the new order next month earlier. thanks.

—— Mr. ABD HALIM

STS prepaid meter test by our engineer, operation smoothly according to your English Use Manual, Nince cooperation

—— Mr. Rodrigo Araujo

new mould case din rail meter single phase 5(60)A and 3x10(100)A delivered to our authority, they are very satisfied with the new items. will inform the new orders,thanks

—— Mr. Sathyanarayana D

I'm Online Chat Now

YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ

China YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ supplier
YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ supplier YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ supplier YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ supplier YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ supplier

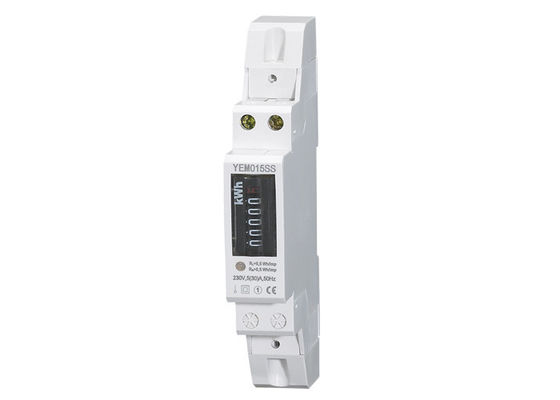

Large Image :  YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ

Product Details:

Place of Origin: Zhejiang,China
Brand Name: YOMIN
Certification: CE / ROHS
Model Number: YEM015SS

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T , Western Union,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Standard: Allowed IEC62053-21 Application: Residential House, Schools, Shopping Malls...
OEM/ODM: Allowed Display Mode: Counter 5+1/6+1
Material Of Meter Case: PC Starting Current: 0.02A

YEM015SS Direct Mode Single Phase Energy Meter 35mm Din Rail 5(30)A​





Specifications:



Model Accuracy Frequency Reference Voltage(V) Current Specification(A) Staring Current(A) Display Mode Insulation Performence
YEM015SS 1.0 50-60HZ 127 V ,230 V 5(30)A 0.02A Counter 6+1/5+1 AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv





Decriptions:



Model YEM015SS single phase electronic DIN rail active energy meter is a kind of new s tyle single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliabili ty, small volume, light weight, specious appearance,
convenient installation, etc





Features:



Measure active energy consumption





Advantages:



1, Good Reliability and Accurate Measurement;
2, Small Volume;
3, Ligth Weight;
4, Customized size;
5, Convenient Installation;
6, Customized Logo printed.







Company Profile:



Established in 2002, Zhejiang Yomin Electric Co., LTD (before named Yueqing Yomin Electric Factory, founded in 1996) is a manufacturer and exporter specialized in the research, development and production and service of different kinds of watt-hour meters, digital meters, pointer meter, terminals and accessories etc.

Located in Wenzhou City, Zhejiang Province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for YOMIN. Most of our products are supplied by tender and widely used in domestic and overseas electricity power companies in more than 90 countries and regions.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee tatal customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, kEMA, CE RoHS, CB,BV etc as well as China domestic certification like CCC and CMC





Dimensions:



YEM015SS Counter 6+1/5+1 Digital Single Phase Energy Meter 35mm Din Rail 50-60HZ
