|Brand Name:||YOMIN||Model Number:||YEM041AL|
|Application:||Residential House, Schools, Shopping Malls...||Standard:||IEC62053-21|
|Display Mode:||LCD||Material Of Meter Case:||PC|
|Starting Current:||0.02A, 0.04A, 0.08A|

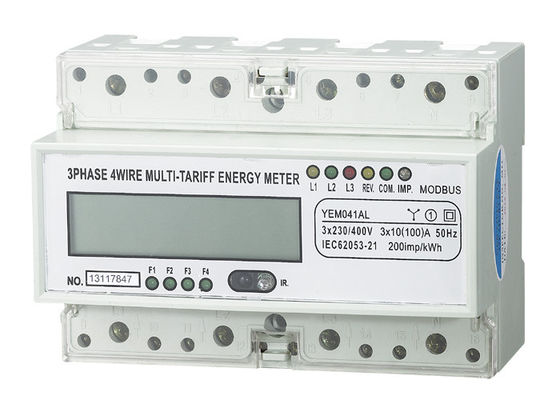

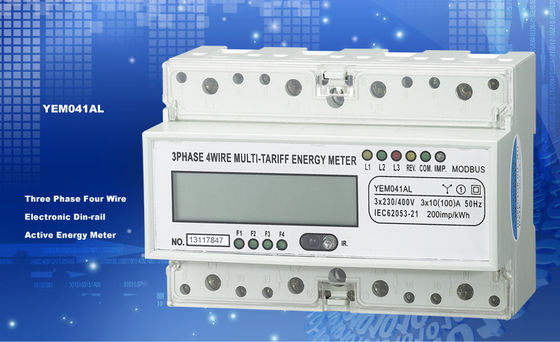

YEM041AL Three Phase Energy Meter Accuracy 1.0 PC 35mm Din Rail
Model YEM041AL three phase four wire electronic multi-rate DIN rail active energy meter is a kind of three
phase four wire three tariffs (time-sharing billing)active energy meter, the meter completely accord with
relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good relia bility, small volume, light weight, specious nice appearance, convenient installation, etc.
|Reference Voltage(V)||Current Specification(A)||Staring Current(A)||Display Mode||Insulation Performence|
|3x127/220V ,3x230/400V||5(30)A,10(60),20(100)A||0.02A, 0.04A, 0.08A||LCD||AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv|
Measure active energy consumption
Far infrared,RS485, DL/T645-1997
Three tariffs,select 12daily period of times,can be customized
A clock battery and a backup battery for 12months,data kept forever after power off
Transport and storage:
6.1 Transport and storage of the meter must not be shaken and must accord with ZBY002-81
6.2 The meter must be stored in the original packing box and the environmental temperature is in -20℃～＋55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.
6.3 The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.
