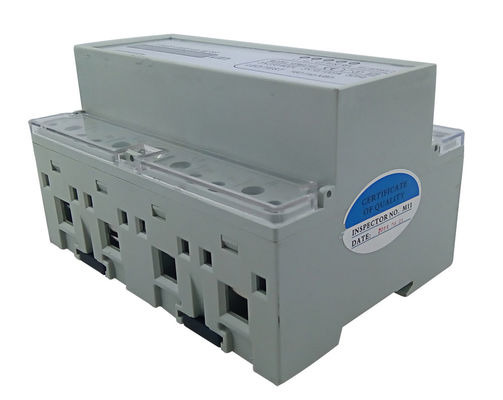

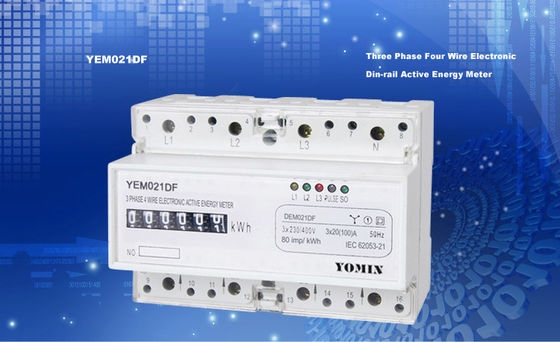

Small Volume Accuracy Class1.0 3 Phase Electricity Meter 35mm Din Rail With Counter 6 Display

Small Volume Accuracy Class1.0 3 Phase Electricity Meter 35mm Din Rail With Counter 6 Display

Specifications:

Applicantion :

•  The meter is used to measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net.
•  The features of small size & DIN-rail mounting make it suitable for installation in distribution boards and small standard enclosures.
•  The meter is widely used in the office buildings, shopping malls, residences, airports and metro,etc.

Functions :

2.1 Front board three fixed hole installation, terminal block is make of bakelite material, which is moisture- resistant, fire-retardant, high temperature overall.

2.2 Way of connection: direct connection, through CT, through CT&PT.

2.3 High accuracy and stability: there is no need to re-calibrate for long term operation.

2.4 steel and antirust base and long terminal cover, transparent glass cover. May select other materials, such as ABS, Polycarbonate etc.

2.5 Standard configuration unidirectional 5+1 digits analog register (99999.1kwh), may select LCD or LED display.

2.6 May extend Communication port, such as RS485, RS232, IR (infrared radiation) etc.

2.7 simple structure, small volume, low power consumption and light weight etc.

2.8 Anti-fraud function (optional).

Transport and storage:

6.1 Transport and storage of the meter must not be shaken and must accord with ZBY002-81

6.2 The meter must be stored in the original packing box and the environmental temperature is in -20℃～＋55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.

6.3 The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.

Company Profile :

Established in 2002, Zhejiang Yomin Electric Co., LTD (before named Yueqing Yomin Electric Factory, founded in 1996) is a manufacturer and exporter specialized in the research, development and production and service of different kinds of watt-hour meters, digital meters, pointer meter, terminals and accessories etc.

Located in Wenzhou City, Zhejiang Province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for YOMIN. Most of our products are supplied by tender and widely used in domestic and overseas electricity power companies in more than 90 countries and regions.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee tatal customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, kEMA, CE RoHS, CB,BV etc as well as China domestic certification like CCC and CMC.

Dimensions :
