CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption

China CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption supplier
CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption supplier CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption supplier

Large Image :  CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption

Product Details:

Place of Origin: Zhejiang,China
Brand Name: YOMIN
Certification: CE/ROHS
Model Number: YEM011TG

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: standard export carton
Delivery Time: 5-30 working days after receiving payment
Payment Terms: T/T , Western Union,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Brand Name: YOMIN Model Number: YEM011JC
OEM/ODM: Allowed Certificate: CE Rosh
Application: Residential House, Schools, Shopping Malls... Standard: IEC62053-21
Display Mode: Counter 5+1 Material Of Meter Case: PC
Starting Current: 0.02A, 0.04A, 0.08A

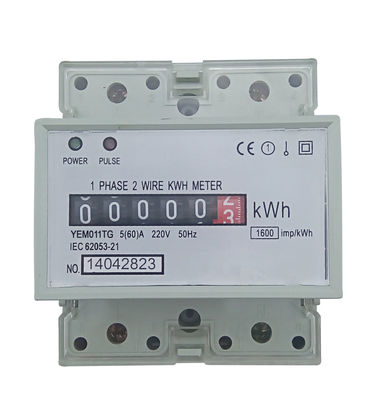

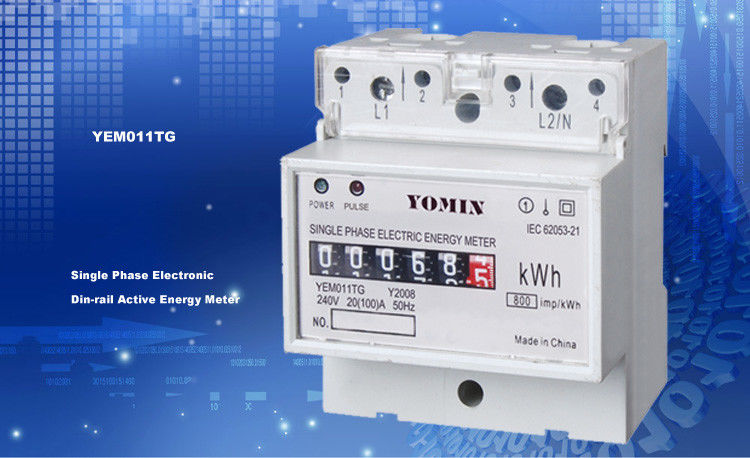

YEM011TG Single Phase Energy Meter Accuracy 1 Direct Mode 35mm Din Rail PC



Decriptions:

Type YEM011TG single phase electronic DIN rail active energy meter is a kind of new style single phase
two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate
circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with
relevant technical requirements of class 1 single phase active energy meter stipulated in international
standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption
from single phase AC electricity net, it can display total energy consumption by step motor type impulse
register. It has following features: good reliability, small volume, light weight, specious nice appearance,
convenient installation, etc.



 Specifications:



Model Accuracy Frequency Size Material
YEM011TG 1.0 50-60HZ 88x75x73mm PC
Reference Voltage(V) Current Specification(A) Staring Current(A) Display Mode Insulation Performence
127 V ,230 V 5(30)A ,10(50)A, 20(100)A 0.02A,0.04A,0.08A Counter 5+1 AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv



Features:

Measure active energy consumption

CE Certificate Single Phase Energy Meter For Measure Active Energy Consumption



Advantages:



1,Good Reliability and Accurate Measurement;
2,Small Volume;
3,Ligth Weight;
4,Customized size;
5,Convenient Installation;
6,Customized Logo printed.

 Dimensions:

CE Certificate Single Phase Energy Meter For Measure Active Energy ConsumptionCE Certificate Single Phase Energy Meter For Measure Active Energy Consumption

 Transport and storage:

6.1 Transport and storage of the meter must not be shaken and must accord with ZBY002-81

6.2 The meter must be stored in the original packing box and the environmental temperature is in -20℃~+55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.

6.3 The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.



Company Profile:

Established in 2002, Zhejiang Yomin Electric Co., LTD (before named Yueqing Yomin Electric Factory, founded in 1996) is a manufacturer and exporter specialized in the research, development and production and service of different kinds of watt-hour meters, digital meters, pointer meter, terminals and accessories etc.

Located in Wenzhou City, Zhejiang Province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for YOMIN. Most of our products are supplied by tender and widely used in domestic and overseas electricity power companies in more than 90 countries and regions.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee tatal customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, kEMA, CE RoHS, CB,BV etc as well as China domestic certification like CCC and CMC

 Deadline of guarantee:

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC62053-11, or of any certification of Power Department or Measuring Department
