Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard

China Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier
Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard supplier

Large Image :  Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard

Product Details:

Place of Origin: Zhejiang , China
Brand Name: YOMIN
Certification: CE / ROHS
Model Number: YEM015SD

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: Negotiation
Packaging Details: Standard export carton
Delivery Time: 5 - 30 working days after receiving payment
Payment Terms: T/T , Western Union , Paypal , L / C
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Application: Residential House, Schools, Shopping Malls... Display Mode: LCD 7 + 1 / 6 + 1
Starting Current: 0.02A Advantage: Ligth Weight
Measuring Energy Range: 0-999999.9kWh Frequency: 50-60HZ

5(80)A 230V 50HZ Display Voltage Current Positive Reverse Power Reset To Zero Single Phase Din Rail KWH Watt Hour



Decriptions :



Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique and imported large scale integrate circuit, and uses advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately
and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net . This meter has white backlight source eight digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume,light weight , specious nice appearance , convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0119356.3,any other country patent certificate are in assessing.



Specifications :



Model Accuracy Frequency Reference Voltage(V) Current Specification(A) Staring Current(A) Display Mode Insulation Performence
YEM015SS 1.0 50-60HZ 127 V ,230 V 5(30)A 0.02A Counter 6+1/5+1 AC voltage 4kv for 1 minute,1.2/50us wavefrom impulse voltage 6kv



Features :



  1.  35mm standard DIN rail installation, complying with standard DIN EN50022.
  2.  Single pole width (Modulus 17.5mm), complying with standard DIN43880.
  3.  Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May select7+1 digits display (999999.1kWh) without backlight source general LCD, (product Configuration code is SE).
  4.  Standard configuration pulse output passive (polarity),May select distant pulse output passive
  5.  ( Nonpolarity ) And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.
  6.  Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
  7.  Automatic detection the direction of the flow of load current. And Instructions on LED (when display HELP 1 on LCD, that is meaning the direction of the flow of load current reverse).
  8.  Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
  9.  Directly connect operation, there are two types wiring you may select. Standard configuration type S wiring, may select type U wiring (Product Configuration code is UD).

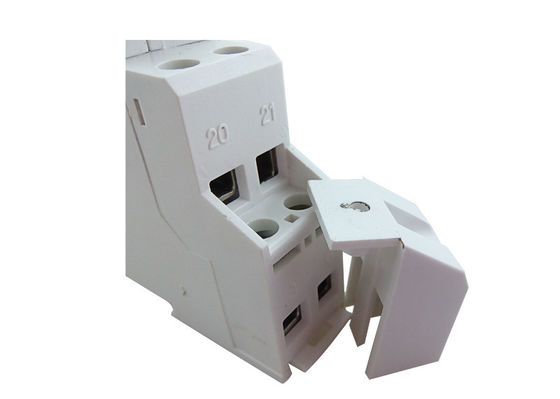

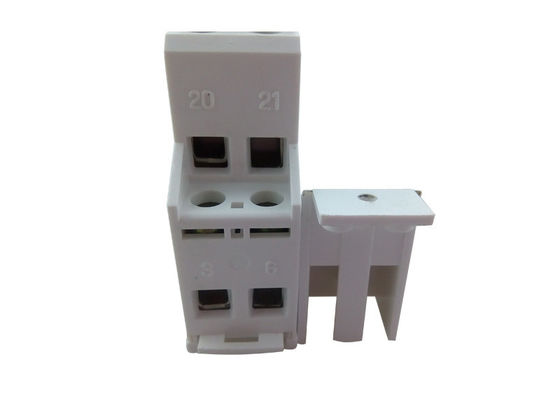

  10.  Extension terminals cover,in order to protect to use safety.


Detail :

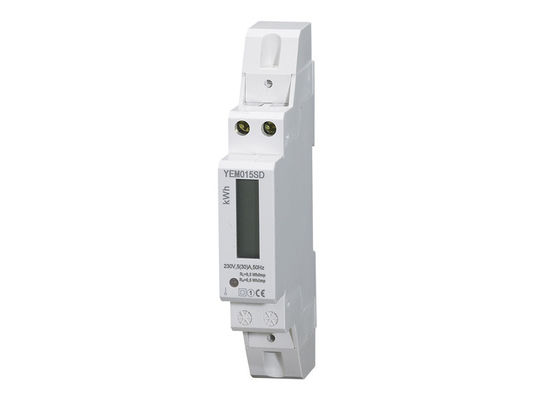

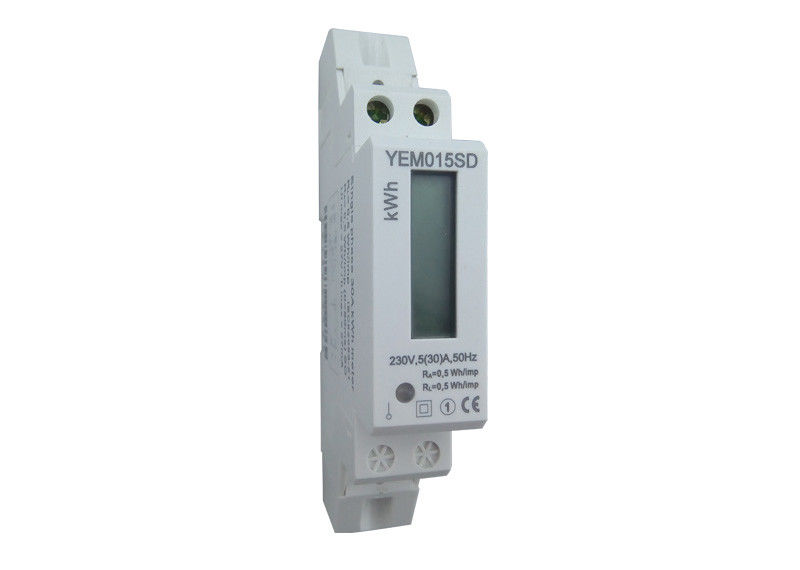

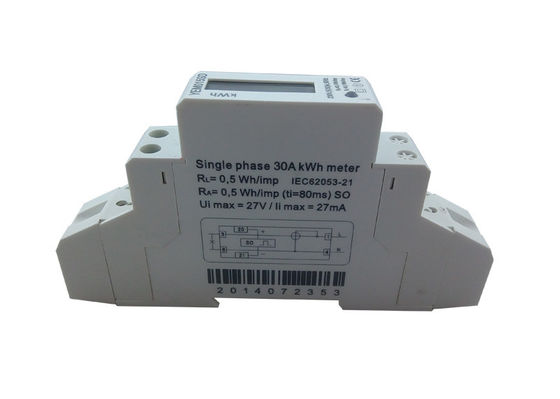

Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard


Dimension :



Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard



Ligth Weight 230V 50HZ Electronic Din Rail Mounted Kwh Meter , 35mm Standard
