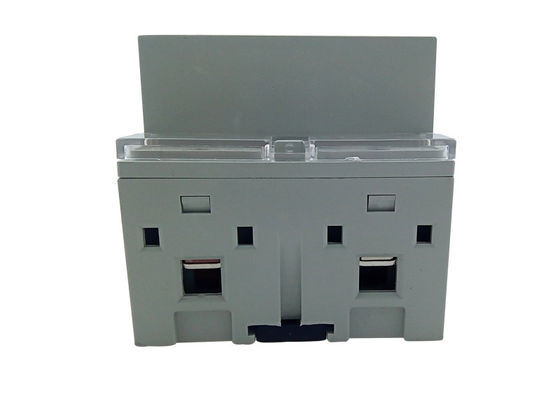

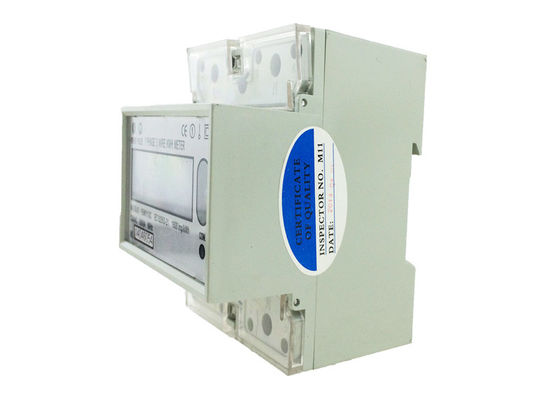

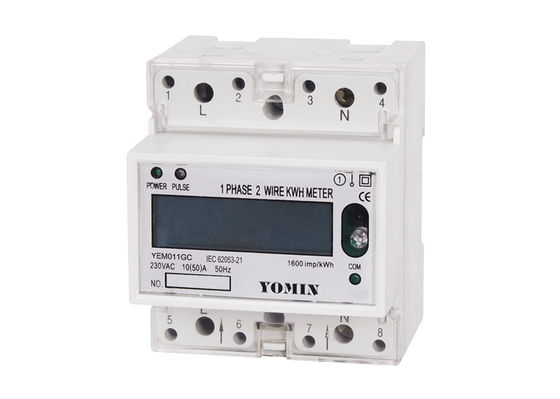

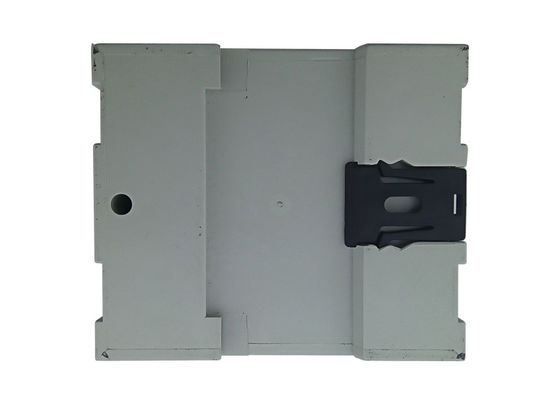

RS485 Modbus Protocol Din Rail Kwh Meter Single Phase For Solar Systems YEM011GC

RS485 Modbus Protocol Single Phase Energy Meter Din Rail Type For Solar Systems YEM011GC

Features:

1. 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting
(mounting holes center distance 63 mm), users can choose any one by themselves.

2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

3. May select6+1 digits display (999999.1kWh) or 5+2 digits display, it can be arbitrary set by users
from far infrared or port of RS485 data communication.

4. Standard configuration one port of pulse output passive(polarity),May select increase a distant port
of pulse output passive (nonpolarity), complying with standard IEC 62053-31.

5. There are a port of far infrared data communication and a port of RS485 data communication.

6. Three LED instructions power supply state, signal of energy impulse and communication state.

7. Standard configuration don’t detection direction of the flow of load current. May select automatic
detection the direction of the flow of load current. And instructions by an individual LED.

8. Single direction measure single phase two wire active energy consumption. It is nothing with direction
of the flow of load current. Complying with standard IEC 62053-21.

9. Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation,
we can also choose another type of connection, and use CT (Product Configuration code is FC) and PT & CT(Product Configuration code is EC) for operation.

10. Standard configuration short terminals cover, may select extension terminals cover, in order to protect
to use safety. (Product Configuration code is GF).

Description :

Model YEM011GC single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, and there are far infrared and RS485 communication module in it. Contact with all kind of AMR system conveniently. It has following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Specifications :

Details :

Dimension :
