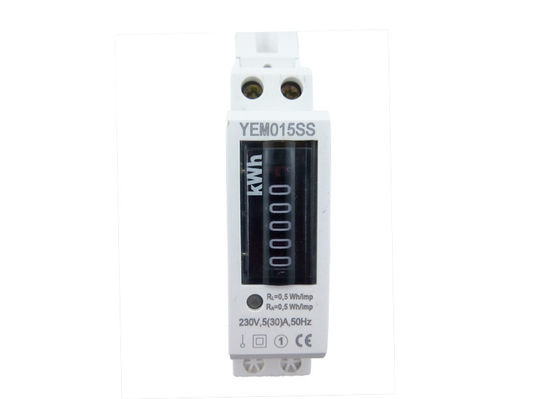

YEM015SS KWh Pulse Output Single Phase Din Rail Energy Meter With Analog Display 60A

YEM015SS kWh Pulse Output Single Phase Energy Meter Din Rail With Analog Display 60A

Decriptions :

Model YEM015SS single phase electronic DIN rail active energy meter is a kind of new s tyle single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliabili ty, small volume, light weight, specious appearance,
convenient installation, etc

Advantages :

•  Good Reliability and Accurate Measurement;Small Volume;Ligth Weight;
•  Customized size;Convenient Installation;Customized Logo printed.

Specifications :

Features:

35mm standard DIN rail installation, complying with standard DIN EN50022.Pole 1.5 width (Modulus 17.5mm), complying with standard DIN43880.Standard configuration 6+1 digits display (999999.1kWh) by step motor type impulse register,May select 5+1 digits display (99999.1kWh).Standard configuration pulse output passive (polarity),May select distant pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

Two LED instructions power supply state (green) and signal of energy impulse (red).
Automatic detection the direction of the flow of load current,And Instructions (Only red energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

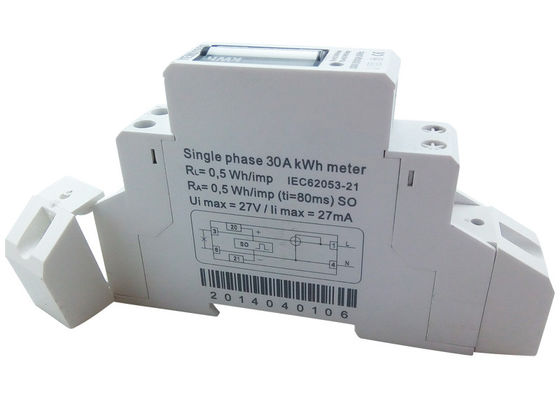

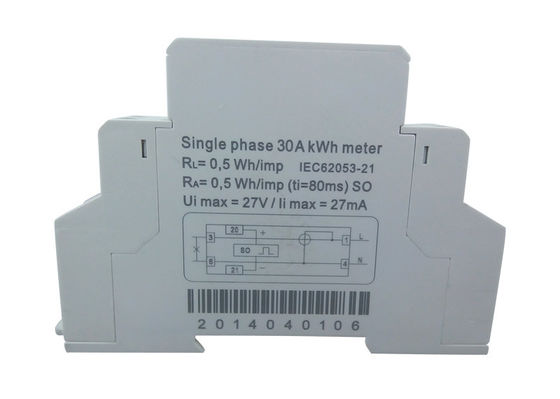

Directly connect operation, there are two types wiring you may select,Standard configuration type S wiring. May select type U wiring (Product Configuration code is UM).
Extension terminals cover,in order to protect to use safety.

Deadline of guarantee:

•  Within 18 months from the date of manufacture the user complies with all of above rules.
•  If the meter still being sealed does not conform to any technical requirements of IEC62053-11, or of any certification of Power Department or Measuring Department.

Transport and storage :

Transport and storage of the meter must not be shaken and must accord with ZBY002-81.The meter must be stored in the original packing box and the environmental temperature is in -20℃～＋55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.

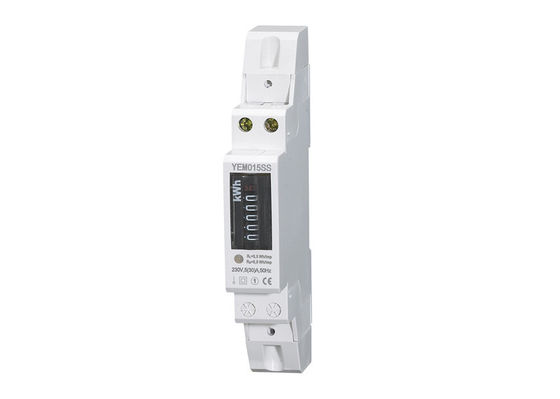

Detail :

Dimension :
