Product Details:
Payment & Shipping Terms:
|
OEM/ODM: | Allowed | Application: | Residential House, Schools, Shopping Malls... |
---|---|---|---|
Material Of Meter Case: | PC | Output Voltage: | 127 V, 230 V |
Operating Temperature: | -20℃~+70℃ | Dimensions: | 88x75x73mm |
Highlight: | din rail watt hour meter,din rail energy meter |

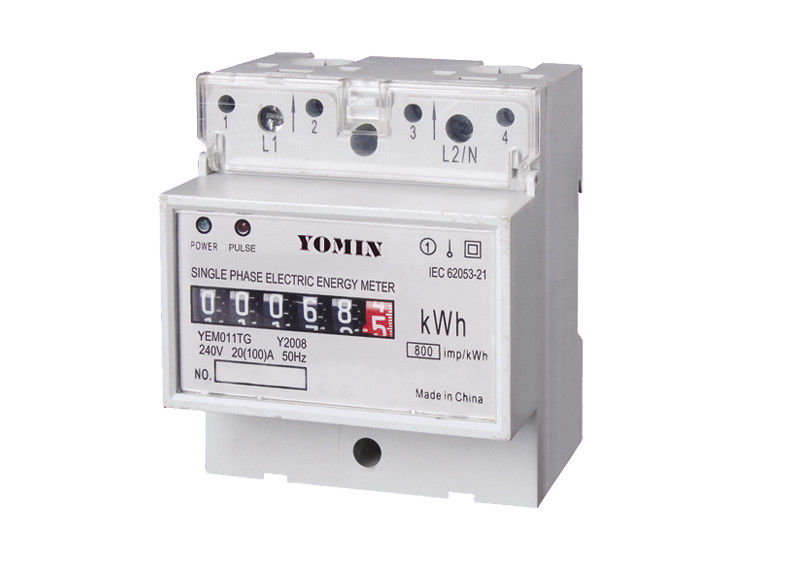

Electronic DIN Rail YEM011TG Single Phase Energy Meter Cyclometer Display 110V / 220V With Counter Display
Description :
Type YEM011TG single phase electronic DIN rail active energy meter is a kind of new style single
phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale
integrate circuit, uses advanced technique of digital and SMT techniques, etc. The meter completely
accords with relevant technical requirements of class 1 single phase active energy meter stipulated in
international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active
energy consumption from single phase AC electricity net, it can display total energy consumption by
step motor type impulse register. It has following features: good reliability, small volume, light weight,
specious nice appearance, convenient installation, etc.
Specifications :
Model | Accuracy | Frequency | Size | Material |
YEM011TG | 1.0 | 50-60HZ | 88x75x73mm | PC |
Reference Voltage(V) |
Current Specification(A) |
Staring Current(A) |
Display Mode |
Insulation Performance |
127 V,230V |
5(30)A,10(50)A, 20(100)A |
0.02A,0.04A, 0.08A |
Counter 5+1 |
AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv |
Features :
1. 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting
(mounting holes center distance 67 mm), users can choose any one by themselves.
2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
3.5+1 digits display (99999.1kWh) by step motor type impulse register.
4. Standard configuration one port of pulse output passive(polarity),May select increase a distant port
of pulse output passive (nonpolarity), (Product Configuration code is TI). And contact with all kind of
AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.
5. Two LED instructions power supply state (green) and signal of energy impulse (red).
6. Standard configuration don’t detection direction of the flow of load current. May select automatic
detection the direction of the flow of load current. And instructions (Only red energy pulse signal when
working, that is meaning the direction of the flow of load current reverse).
7. Single direction measure single phase two wire active energy consumption. It is nothing with direction
of the flow of load current. Complying with standard IEC 62053-21.
8.may select type S wiring (Product Configuration code is AG).
9. Standard configuration short terminals cover, may select extension terminals cover, in order to
protect to use safety. (Product Configuration code is TH).

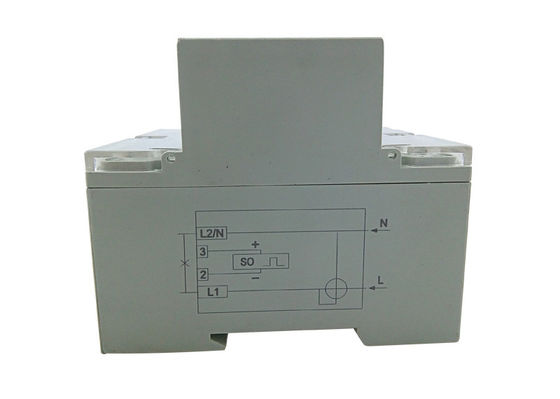

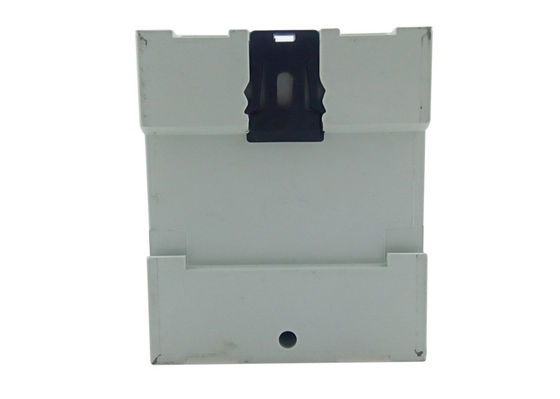

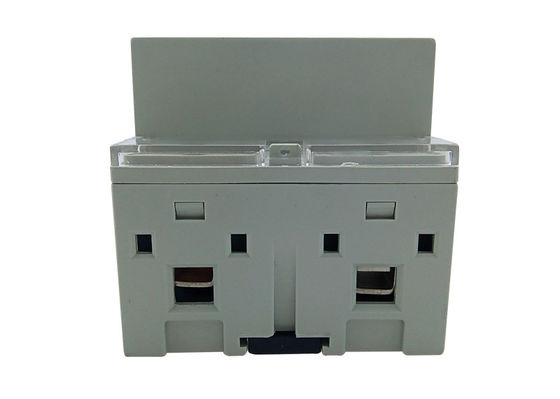

Detail :
Dimension :
