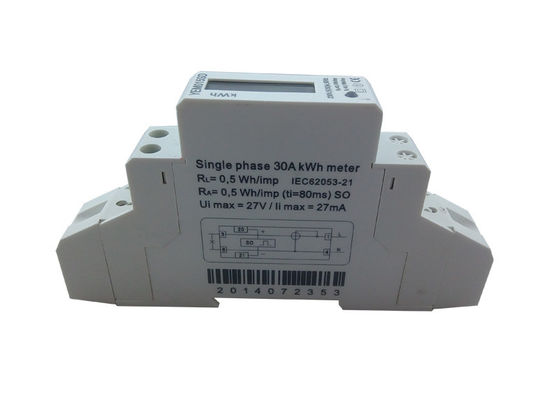

5(80)A 230V 50HZ LCD Display Voltage Current Single Phase Energy Meter Positive Power Din Rail KWH

5(80)A 230V 50HZ LCD Display Voltage Current Single Phase Energy Meter Positive Power Din Rail KWH

Features :

35mm standard DIN rail installation, complying with standard DIN EN50022.Single pole width (Modulus 17.5mm), complying with standard DIN43880.Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May select7+1 digits display (999999.1kWh) without backlight source general LCD, (product Configuration code is SE).Standard configuration pulse output passive (polarity),May select distant pulse output passive( Nonpolarity ) And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.Bicolor LED instructions power supply state (green) and signal of energy impulse (red).Automatic detection the direction of the flow of load current. And Instructions on LED (when display HELP 1 on LCD, that is meaning the direction of the flow of load current reverse).

1. Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
2. Directly connect operation, there are two types wiring you may select. Standard configuration type S wiring, may select type U wiring (Product Configuration code is UD).

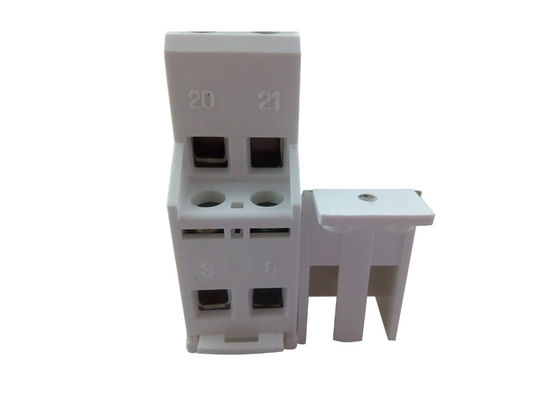

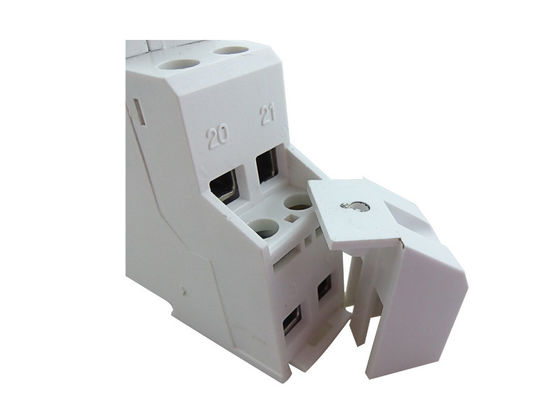

3. Extension terminals cover,in order to protect to use safety.

Decriptions :

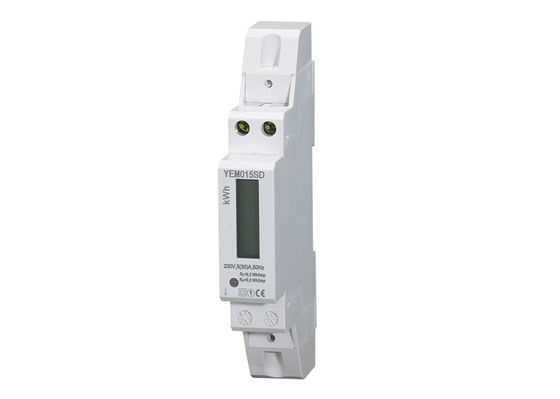

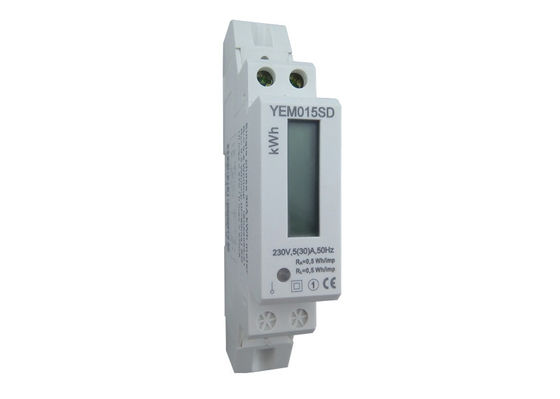

•  Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique and imported large scale integrate circuit, and uses advanced technique of digital and SMT techniques, etc.
•  It has its completely independent intellectual property rights and minimum size.
•  It has already passed the test of the international authority KEMA.
•  The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21.
•  It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net .
•  This meter has white backlight source eight digits LCD displays shows the active energy consumption.
•  It has following features: good reliability, small volume,light weight ,specious nice appearance , convenient installation, etc.
•  This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0119356.3,any other country patent certificate are in assessing.

Specifications :

Detail :

Dimension :
