Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5

China Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5 supplier

Large Image :  Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5

Product Details:

Place of Origin: ZHEJAING, CHINA
Brand Name: YOMIN
Certification: CE
Model Number: LMZ1-0.5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: conferential
Packaging Details: carton
Delivery Time: 3-5 days
Payment Terms: L/C, T/T, Paypal, West Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Material: Copper Color: Red
Type: LMZ1 Mini Transformer Usage: Current

LMZ1-0.5 Ring type bus bar cast resin current transformer low voltage 5A for ct operated meter



Production Description:



LV indoor current transformer LMZ1-0.5
epoxy cast resin type .
Indoor type
current ratio:5-300/5A
rated voltage :0.5kv or below
1).accuracy class: 0.2 , 0.5 , 1 , 3
2).buden :5VA----50VA
3).50/60Hz
4).standard :IEC .
5).ISO Certificate



Specification:



1.Primary current 1~1000A
2.Secondary current 1A or 5A
3.1.0 Class



Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5

Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5

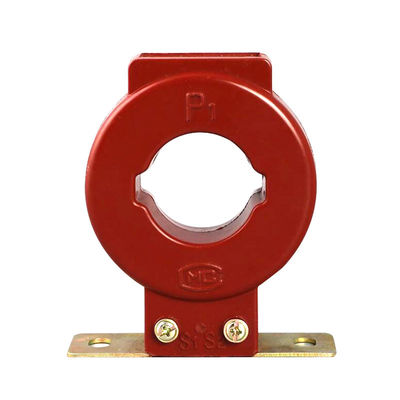

Picture:



LMZ1-0.5 type current transformer is mainly used for indoor, for the rated voltage of 0.5kV and below, rated frequency 50Hz AC circuit as the current energy measurement or relay protection, current transformer casting products for which installation methods plate fixed installation method.







Drawing and Size:



Cast Resin Current Transformer Low Voltage 5A For Ct Operated Meter , LMZ1-0.5
