LMZ1-0.5 Ring Type Bus Bar Cast Resin LV Current Transformers Class 0.5 Class1.0

LMZ1-0.5 Ring type bus bar cast resin current transformer , class 0.5 class1.0 current transformer

Specifications:

CT Current Transformer:
1. Voltage: 0.5KV
2. Frequency:50Hz
3. Primary current: 5-1200A
4. Secondary current: 5A

Production Description:

1. Specifications of CT Current Transformer

CT Current Transformer is designed for current, power measurement and relay protection in AC power system with rated frequency 50Hz, rated voltage 0.5KV and below.

2. Construction Features of CT Current Transformer

1). CT Current Transformer is bus type and cast-resin insulated.

2). The middle of the window for the bus to wear around, base bottom for fixed installation.

3). The Secondary windings wound on the core. The base plate is located at the bottom for mounting.

4). Performance, light weight, convenient installation, etc.

3.condition of CT Current Transformer

1). Altitude: up to 1000m above sea level

2). Ambient temperature: -5to +40°C

3). Relative humidity: 85%at 20°C

4). Indoor used

Details:

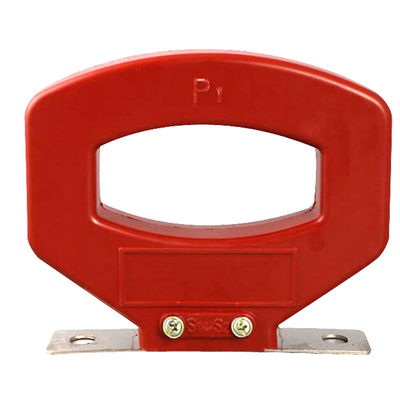

Picture:

Drawing:
