MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers

China MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers supplier
MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers supplier MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers supplier MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers supplier MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers supplier

Large Image :  MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: YOMIN
Certification: CE, ROHS
Model Number: MSQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: it can be negotiated
Packaging Details: carton
Delivery Time: shipped in 2-5 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Accuracy: Class 0.5 Product Name: Current Transformer With MSQ
Coil Number: 160 Turns Frequency: 50/60Hz
Max System Vo: 720 V AC Working Tempe: -25℃ ~ +50℃

MSQ 200/5a CT Current transformer or transformator manufacturer for energy meter



Product Description:



MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.



Specifications:



Model Rated Current(A) Busbar Hole Rated Accuracy Rated Rated
Primary/Secondary Dimension Burden(VA) Class Voltage(V) Frequency
          (Hz)
MSQ-30 30/5A-300/5A 30×10mm 1.5-2.5 3.0~0.5 600 50/60
MSQ-40 150/5A-800/5A 40×10mm 5-10 1.0~0.5 600 50/60
MSQ-60 400/5A-1200/5A 60×20mm 5-10 1.0~0.5 600 50/60
MSQ-100 800/5A-3000/5A 100×10mm 15 1.0~0.5 600 50/60
MSQ-130 1500/5A-5500/5A 130×10mm 15 1.0~0.5 600 50/60

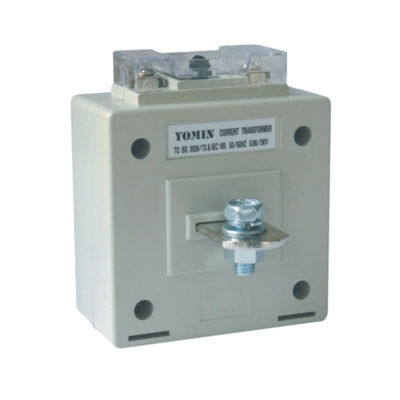

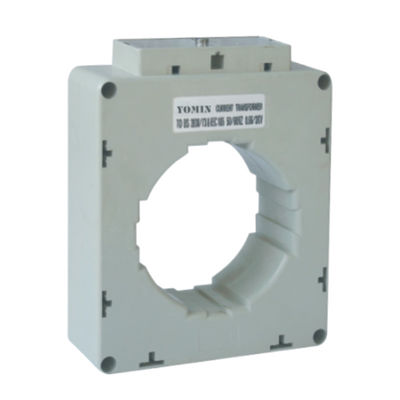

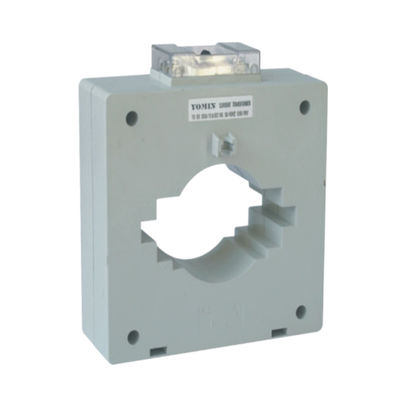

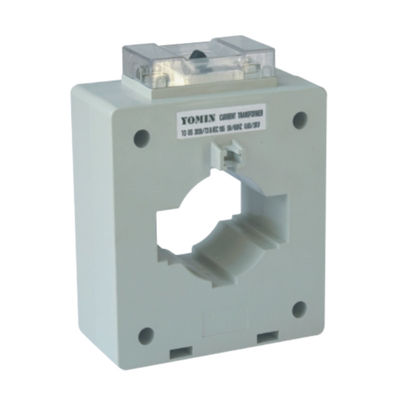

Picture:



MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers



Dimension and Wiring:



MSQ 200/5a CT LV Current Transformers For Energy Meter , Low Voltage Current Transformers
