House Service Fuse Series Fuse Cutout With Transparent Shell

China House Service Fuse Series Fuse Cutout With Transparent Shell supplier
House Service Fuse Series Fuse Cutout With Transparent Shell supplier House Service Fuse Series Fuse Cutout With Transparent Shell supplier House Service Fuse Series Fuse Cutout With Transparent Shell supplier House Service Fuse Series Fuse Cutout With Transparent Shell supplier House Service Fuse Series Fuse Cutout With Transparent Shell supplier

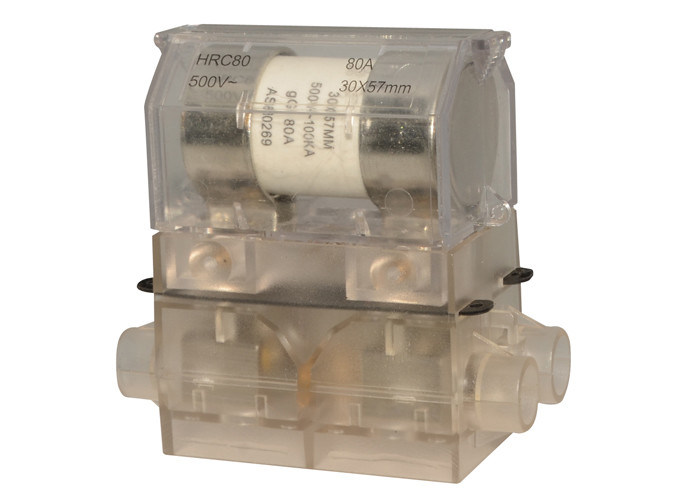

Large Image :  House Service Fuse Series Fuse Cutout With Transparent Shell

Product Details:

Place of Origin: Zhejiang , China ( Mainland )
Brand Name: YOMIN
Certification: CE / RoHS
Model Number: cutout fuse

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece
Price: Negotiation
Packaging Details: Export carton , 1 Piece / Carton
Delivery Time: 5 - 20 working days after received your payment
Payment Terms: L/C , T/T , Western Union , Paypal
Supply Ability: 1000 Pieces Per Week
Contact Now
Detailed Product Description
Type: Cut Out Fuse Usage: Low Voltage
Breaking Capacity: High Safety Standards: IEC
Material: Bakelite, Brass Main Color: Transparent Shell
Rated Voltage: 415V AC Current Rating: 60A, 80A, 100A

House service fuse cutout with Transparent shell , House Service Cutout



Product Description :

STANDARD CUTOUTS cutouts are made of high grade phenolic moulding power having high mechanical and dielectric strength. The body possesser non-hygroscopic and non-tracking qualities. Terminal contracts are of tinned brass with phosphor bronze back up compression spring capable of providing flawless service even after years of use.



Design Features
Totally insulated body of phenolic molding non-hygroscopic giving improved mechanical strength.
Easy fuse replacement-fuse link self locating in fuse clip.
Provision is made to seal the unit against unauthorized access.
Clip spring in the fuse clip ensures high pressure contact.
Wiping action ensures low resistance with tin plated base contact.
All phase terminals are shrouded by fixed shield which is part of molding.
The phase terminals can accommodate two outgoing and two incoming cables rangings from 6 mm2 to
35mm2.
It can accommodate fuses as per B. S. 1361-1971, In a comprehensive range of ratings from 15 Amps. to
60 80 100 Amps.



System Parameter
Nominal system voltage: 400/230V, 3ph Neutral.
System highest voltage: 440/250V, 3ph Neutral.
System frequency: 50Hz.
Method of earthing: Solidly earthed neutral at
substations.
System fault level: 5KA.

House Service Fuse Series Fuse Cutout With Transparent Shell
